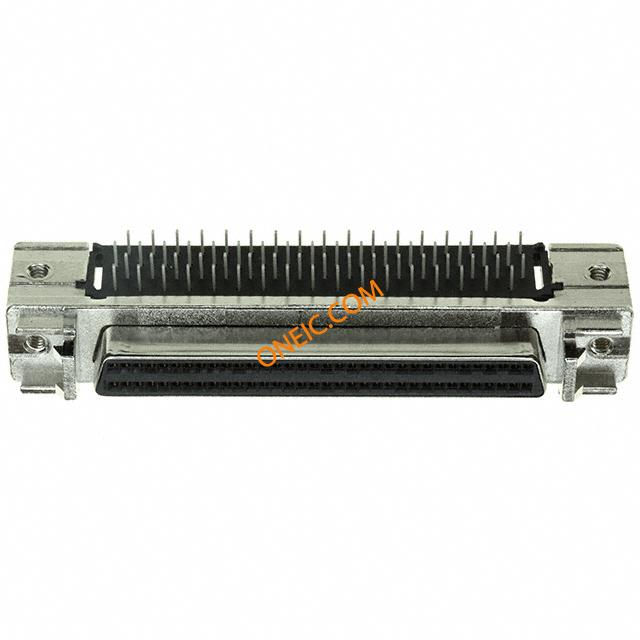

5787190-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 68 POS 2.54mm Solder RA Thru-Hole 68 Terminal 1 Port D-Sub Standard Connectors R/A RCPT ASSY 68 50SR .050 Series Board Mount Connectors CONN RCPT 68POS R/A .050 RDSN Conn D-Subminiature SKT 68 POS 2.54mm Solder RA Thru-Hole 68 Terminal 1 Port Product Highlights:ConnectorWith ContactsHousing Gender = Receptacle68 PositionsRight Angle Mount AngleSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub SOCKET, SCSI2, 68WAY 68 50SR R/A RCPT ASSY,RDSN L/F |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 8 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 30V | 开关功能 | Without |
| 最大额定电流 | 1A | 最小供电电压 | 30VAC |
机械参数
| 颜色 | Black | 深度 | 16.87 mm |
| 间距 | 2.54 mm | 高度 | 10.31 mm |
| 重量 | 0.016 | 材料（通用） | :Steel, tinned |
| 包装方式 | Tube | 屏蔽类型 | Yes |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Through Hole | 外壳镀层 | Nickel over Copper |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Tin over Nickel |
| 法兰特征 | Housing/Shell (2-56); Latchblocks, Rails | 安装导轨 | With |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 1.57 [0.062] |
| 连接器样式 | D-Type | 锁定特性 | Latch Blocks |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 63.88 mm | 端接样式 | Through Hole |
| 触点数 | 32 | 接触件端接 | :Solder |
| 位数 | 68 | 外壳尺寸-插件 | Full Metal |
| 外壳材料及表面处理 | Steel, Nickel Plated | 端子柱长度 | 2.54 [0.100] |
| 接触镀层厚度 | Flash | 第一连接器安装类型 | :PCB |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | Series III | 产品特性 | Shielded |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
文档与媒体
