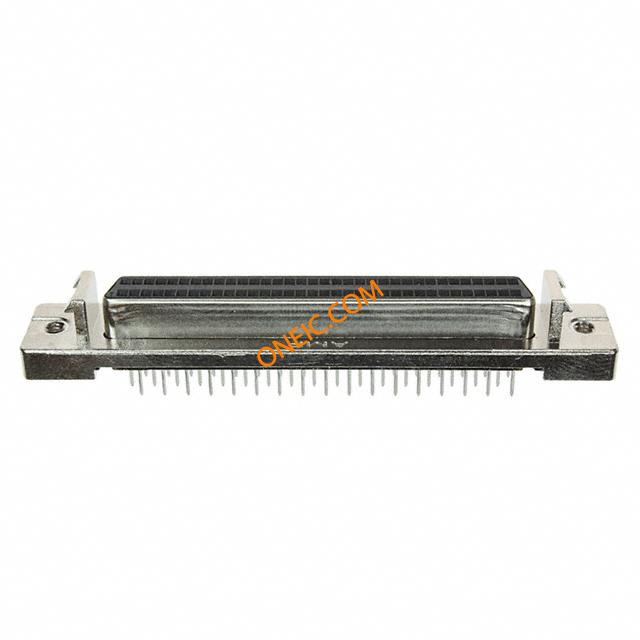

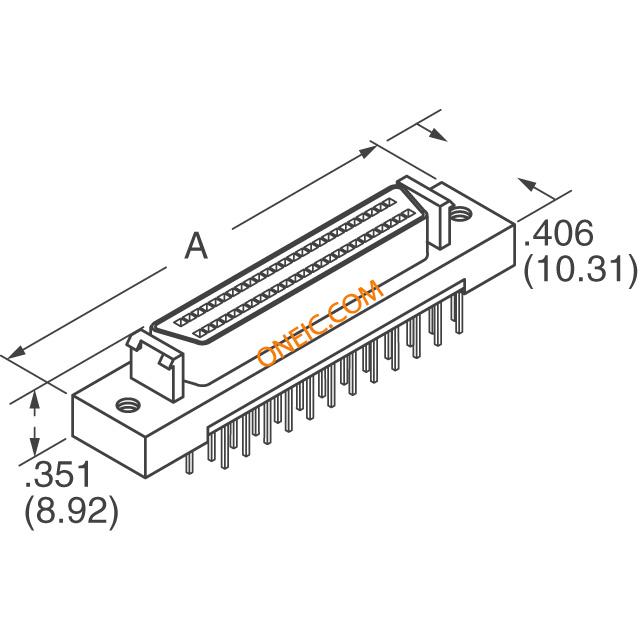

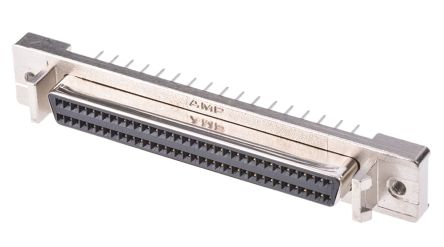

5749721-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 68 POS 2.54mm Solder ST Thru-Hole 68 Terminal 1 Port D-Sub Standard Connectors 050 068R VRT PCB .050 Series Board Mount Connectors CONN RECEPT 68POS VERT .050 GOLD Conn SCSI RCP 68 POS 2.54mm Solder ST Thru-Hole 68 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 68PCB Mount Angle = VerticalThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONNECTOR, RCPT 68POS 1.27MM Conn;D-Sub;PCBSocket;68Pos;STR;IIISeries;Solder TE Connectivity Amplimite .050 III 系列 1.27mm 节距 68 路 直向 D-Sub 连接器, 焊接 端接 68 50SR VERT RCPT ASSY |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 8 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 0.050 Series | 额定电压 | 30V |
| 开关功能 | Without | 最大额定电流 | 1A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.009 | 包装方式 | Tube |
| 屏蔽类型 | Yes | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 安装类型 | Through Hole | 外壳镀层 | Tin over Copper |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (2-56); Latchblocks | 安装导轨 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Type |
| 锁定特性 | Latch Blocks | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 端接样式 | Solder |
| 触点数 | 68 | 接触件端接 | :Through Hole Vertical |
| 位数 | 68 | 外壳尺寸-插件 | Full Metal |
| 外壳材料及表面处理 | Steel, Nickel Plated | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | Flash | 第一连接器安装类型 | :PCB |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row | ||
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | Series III | 产品特性 | Shielded |
| 制造商全称 | AMP | 产品子类型 | Connector |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
相关型号

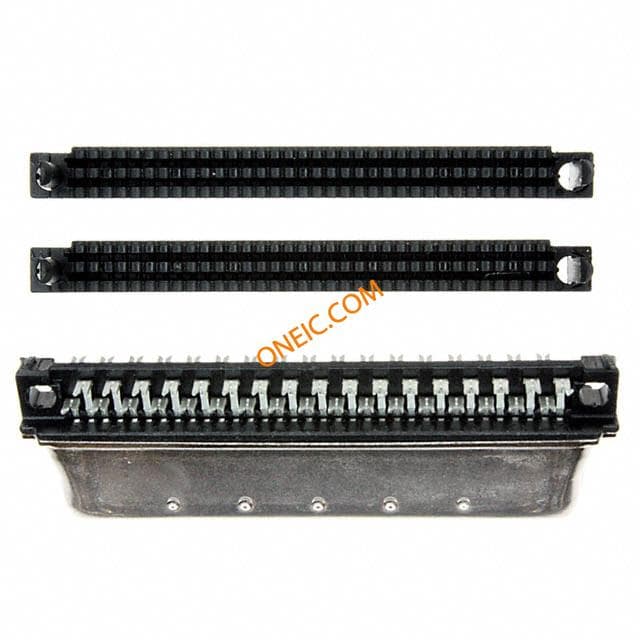

5749111-6
te connectivity / amp
Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN PLUG 68POS .050SR W/COVER TE Connectivity III Series, Male 68 Way Straight Cable Mount SCSI Connector 1.27mm Pitch, IDC, Latch Block I/O Connectors 68 CABLE PLUG ASSY Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 68Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub CONNECTOR, PLUG, IDC, 68WAY Conn;D-Sub;CablePlug;68Pos;STR;IIISeries;IDC;30-28AWG TE Connectivity III 系列 68 路 1.27mm节距 直 电缆安装 公 SCSI 连接器, IDC, 闭锁块 68 50SR CABLE PLUG ASSY
5749621-7
te connectivity / amp
Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port D-Sub Standard Connectors 68 POS CABLE PLUG CONN/COVER KIT .050 Series Cable Connectors (SCSI) CONN PLUG 68POS .050 IDC W/COV TE Connectivity Male 68 Way Right Angle Cable Mount SCSI Connector 1.27mm Pitch, IDT Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 68Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub PLUG, IDC, SCSI2, 68WAY Conn;D-Sub;CablePlug;68Pos;STR;IIISeries;IDC;30-28AWG Male Cable Connector SCSI 2 68, 5749621-7, TE Connectivity TE Connectivity 68 路 1.27mm节距 直角 电缆安装 公 SCSI 连接器, IDT 68 50S CABLE PLUG CONN/COV KIT

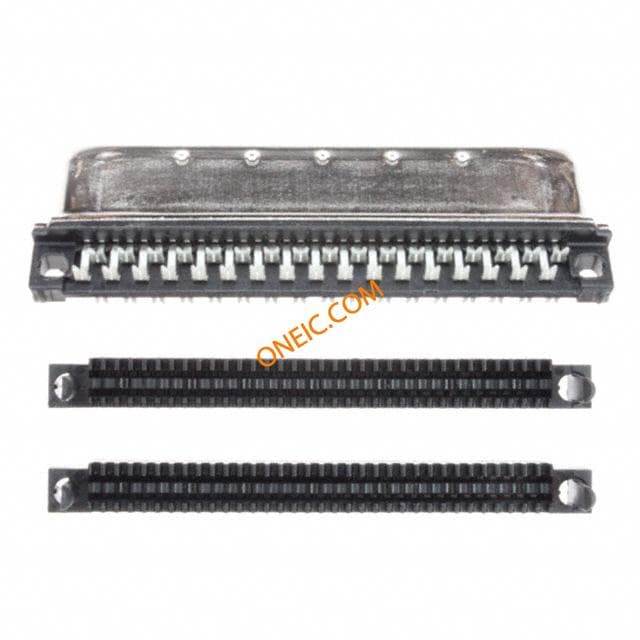

5750913-7
