点击放大查看

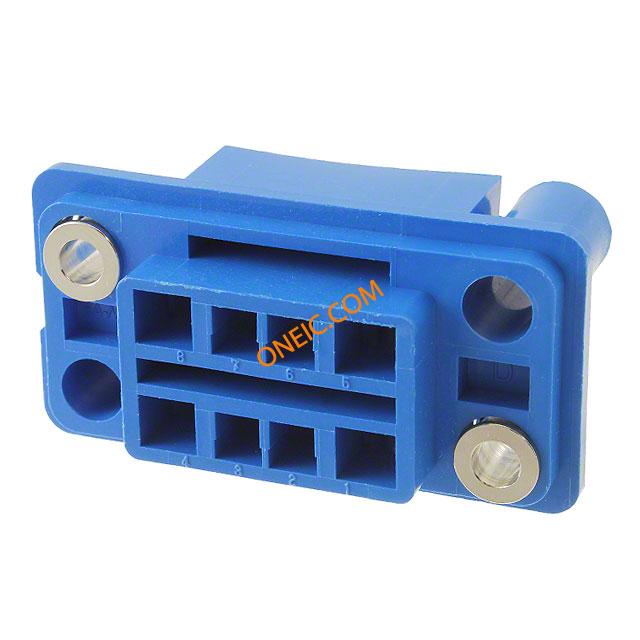

5172070-3
| 制造商 | |
| 描述 | Conn Housing RCP 8 POS Crimp ST Panel Mount Drawer Connectors DRAWER CONN FMALE HSG ASSY 8P Heavy Duty Power Connectors DRAWER CONN HSG ASSY FEMALE 8P DIA 4.3 Drawer Connectors Product Highlights:HousingReceptacleDrawer Style = StandardNumber of Positions = 8Not PreloadedSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, DRAWER CONN. FEMALE HSG ASSY 8 |
| 分类 |
商业参数
| 标准包装规格 | 180 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 | 连接器阻抗 | 压接 |
| 输出高/低电流 | No | ||
机械参数
| 颜色 | Blue | 间距 | 0.260" (6.60mm) |
| 宽度 | 25 | 高度 | 26.3 mm [ 1.035 in ] |
| 长度 | 51.2 mm [ 2.02 in ] | 包装方式 | Bulk |
| 壳体颜色 | 蓝色 | 导线线规 | .22 – 2.18 |
| 排间距 | 9.9 | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | Blindmate |
| 安装样式 | 不带 | 排数 | 2 |
| 连接器样式 | Drawer | 连接器用途 | Receptacle |
| 面板厚度 | 1.60 [0.063] | 壳体材料 | PBT |
| 触点数 | 8 | 位数 | 8 |
| 触头长度-柱 | 电源 | 安装孔直径 | 带有 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 料盒尺寸 | 4.00 [0.157] |
| 产品特性 | Guide Pin | 预加载 | No |
| 产品子类型 | Housing | 抽屉总数 | Standard |
| 列数 | 4 | 其他规格 | 6.6 |
环境参数
| 工作温度 | -20 – 120 | ||
