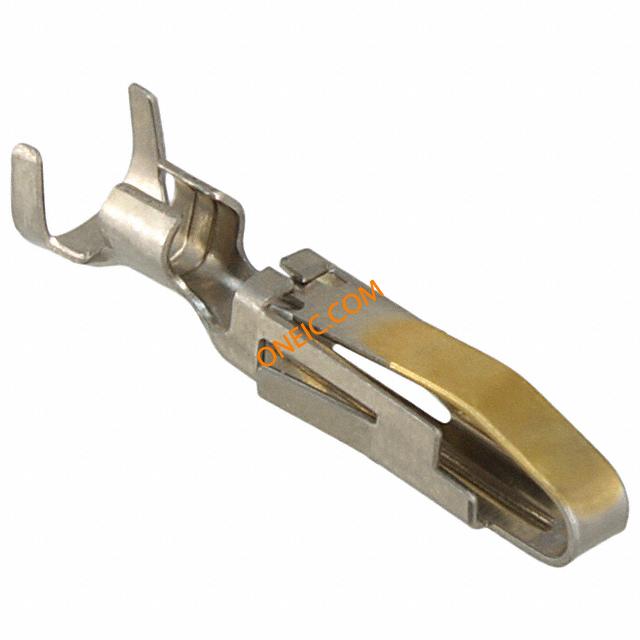

170314-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Drawer Connectors CONN CONTACT 18-14AWG CRIMP GOLD Drawer,contact,hermaphrodtc,0.80-2.00mm2 Heavy Duty Power Connectors DRAWER CONN CONT 170314-1 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactHermaphroditicWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.30 - 3.90 mmLoose PieceSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, TE Connectivity Blind-Mate 系列 母 压接接线端子, 压接, 镀金触点 DRAWER CONN.CONTACT |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 输入电阻 | 5000 | 钳位电压 | 2000 |
| 连接器阻抗 | 压接 | 最大额定电流 | 7 A |
| 输出高/低电流 | No | ||
机械参数
| 宽度 | .126 英寸, 3.2 mm | 高度 | 3.7 mm [ .1457 in ] |
| 长度 | 21 mm [ .8268 in ] | 包装方式 | Bulk |
| 电缆类型 | 绞线 | 导线线规 | 14-18 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 插针或插孔 | Non-Gendered | 电缆直径 | 2.18mm² |
| 连接器类型 | Connector Power | 接触镀层 | Gold |
| 线槽类型 | 直式 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | 压接扣入式 |
| 框架材料 | 镍 | 包装数量 | Loose Piece |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 导体材料 | 铜 | 接触件端接 | Crimp |
| 绝缘直径 | 2.30 â 3.90 [0.091 â 0.154] | 镀层厚度（通用） | 镍 |
| 触头长度-柱 | 信号（数据）/电源 | 线规或范围 - AWG | 18-14 |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | 护套（绝缘）厚度 | .3 µm, 11.81 µin |
产品信息
| 类型 | Signal | 连接器性别 | SKT |
| 系列 | Blind-Mate | 产品子类型 | Contact |
| 抽屉总数 | 小型电源 | ||
环境参数
| 工作温度 | -30 – 105 | ||
文档与媒体
相关型号
