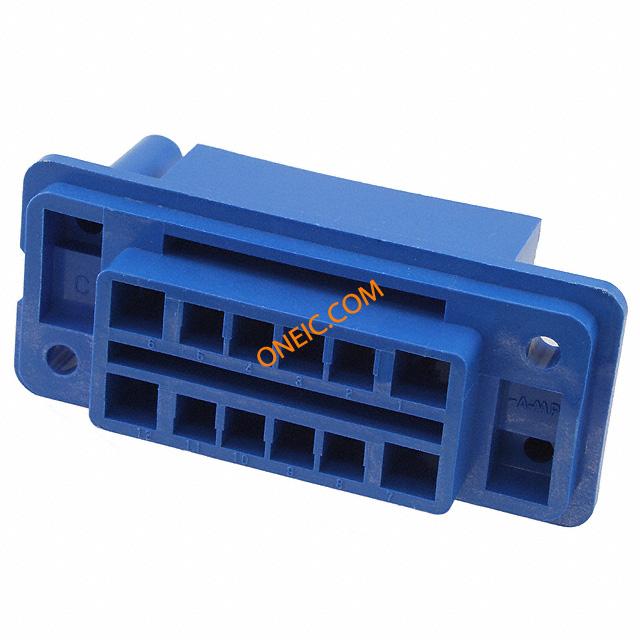

172061-1
| 制造商 | |
| 描述 | Conn Housing PL 12 POS Crimp ST Drawer Connectors CONN PLUG HSNG 12POS BLUE PNL MT Heavy Duty Power Connectors 12P DRAWER MALE HSG Conn Housing PL 12 POS Crimp ST Product Highlights:HousingPlugDrawer Style = StandardNumber of Positions = 12Not PreloadedSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, 12P DRAWER MALE HSG |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 | 连接器阻抗 | 压接 |
| 最大额定电流 | 15 | 输出高/低电流 | No |
机械参数
| 颜色 | Blue | 深度 | 32.5 mm |
| 间距 | 0.197" (5.00mm) ~ 0.200" (5.08mm) | 宽度 | 32.5 |
| 高度 | 26.3 mm | 长度 | 61.2 mm [ 2.41 in ] |
| 包装方式 | Bulk | 导线线规 | 14 – 24 |
| 外壳颜色 | Blue | 安装类型 | Straight |
| 连接器类型 | Blindmate | 法兰特征 | 否 |
| 安装样式 | 不带 | 排数 | 2 |
| 连接器样式 | Drawer | 连接器用途 | Plug |
| 插入件材料 | 磷青铜 | 面板厚度 | 1.60 [0.063] |
| 壳体材料 | PBT | 总长度 | 61.2 mm |
| 面板安装类型 | 带有 | 端接样式 | 插针 |
| 触点数 | 12 | 位数 | 12 |
| 触头长度-柱 | 电源 | 安装孔直径 | 3.30 [.130] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品特性 | Guide Pin |
| 预加载 | No | 产品子类型 | Housing |
| 抽屉总数 | Standard | 列数 | 6 |
| 其他规格 | 6.6 | ||
环境参数
| 工作温度 | -20 – 120 | ||
