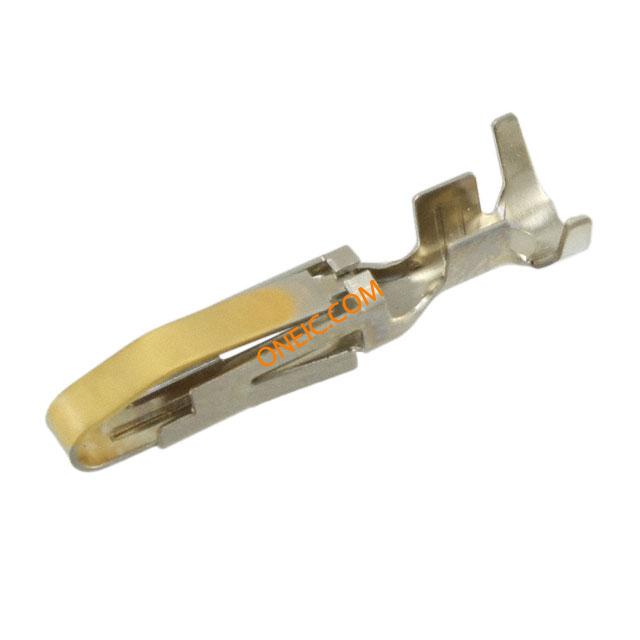

170312-1

点击放大查看

170312-1

制造商
TE Connectivity Ltd.
描述
Contact Crimp ST Cable Mount Strip Drawer Connectors CONN CONTACT 18-14AWG CRIMP GOLD Heavy Duty Power Connectors POWER CONN CONT 170312-1 Contact Crimp ST Cable Mount Strip Product Highlights:ContactHermaphroditicWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.30 - 3.90 mmStripSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, POWER CONN.CONTACT
分类
集成电路逻辑IC标准逻辑IC
对参数有疑问？问 AI 助手

商业参数

其他名称A100470CT标准包装数量Tape & Reel
工厂包装数量5000

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

供电电压250输入电阻5000
钳位电压2000连接器阻抗压接
最大额定电流7输出高/低电流No

机械参数

间距11 mm [ .433 in ]宽度.126 英寸, 3.2 mm
高度3.7 mm [ .1457 in ]长度20.1 mm [ .791 in ]
包装方式Tape & Reel (TR)电缆类型绞线
导线线规14-18 AWG端接方式Crimp
触头类型Signal插针或插孔Non-Gendered
电缆直径1697.23 – 4302.28连接器类型Connector Power
接触镀层Gold线槽类型直式
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料压接扣入式框架材料镍
包装数量Strip端接样式插针/插座, 无极性
导体材料铜接触件端接Crimp
绝缘直径2.30 – 3.90 [0.091 – 0.154]镀层厚度（通用）镍
触头长度-柱信号（数据）/电源线规或范围 - mm²0.80-2.00² [18-14]
护套（绝缘）厚度.3 µm, 11.81 µin

产品信息

备注护套部件号：172059、172061、172063、172068、172069、172070类型Signal
连接器性别Hermaphroditic产品子类型Contact
抽屉总数小型电源

环境参数

工作温度-30 – 105

文档与媒体

PDF 文档
Drawer Connectors
在线文档
170312-1?RQPN=170312-1
