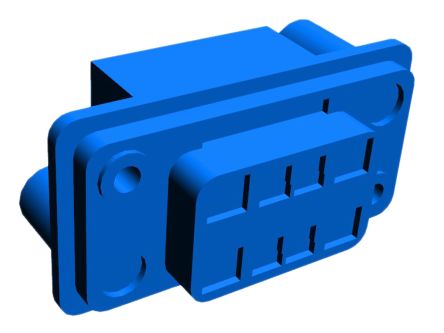

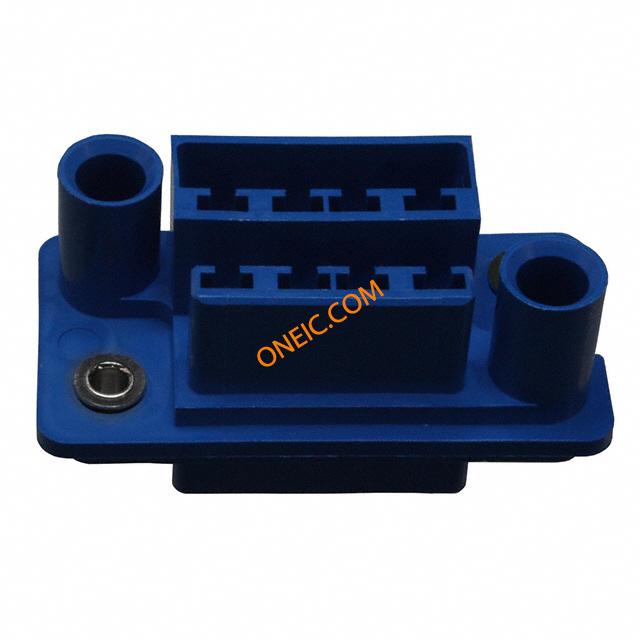

5172070-1
| 制造商 | |
| 描述 | Conn Housing RCP 8 POS Crimp ST Panel Mount Drawer Connectors CONN RECEPT 8 POS BLUE PANEL MT Heavy Duty Power Connectors DRAWER CONN. FEMALE HSG ASSY 8P DIA 3.3 Conn Housing RCP 8 POS Crimp ST Panel Mount Product Highlights:HousingReceptacleDrawer Style = StandardNumber of Positions = 8Not PreloadedSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, HOUSING, RECEPTACLE, 8WAY TE Connectivity 5mm 节距 8 路 直向 2 排 母 背板连接器, 插入式端子 DRAWER CONN. FEMALE HSG ASSY 8 |
| 分类 |
商业参数
| 其他名称 | 51720701 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 输出高/低电流 | No | ||
机械参数
| 颜色 | Blue | 间距 | 0.260" (6.60mm) |
| 重量 | 0.02 | 包装方式 | Bulk |
| 导线线规 | 14-24 AWG | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | Blindmate |
| 排数 | 2 | 连接器样式 | Drawer |
| 连接器用途 | Receptacle | 面板厚度 | 1.60 [0.063] |
| 壳体材料 | PBT | 触点数 | 8 |
| 位数 | 8 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | :- |
| 料盒尺寸 | 3.00 [0.118] | 产品特性 | Guide Pin |
| 预加载 | No | 产品子类型 | Housing |
| 抽屉总数 | Standard | 适用产品/相关产品 | :170311, 170312, 170313, 170314, 170484 & 170485 Socket Contacts |
