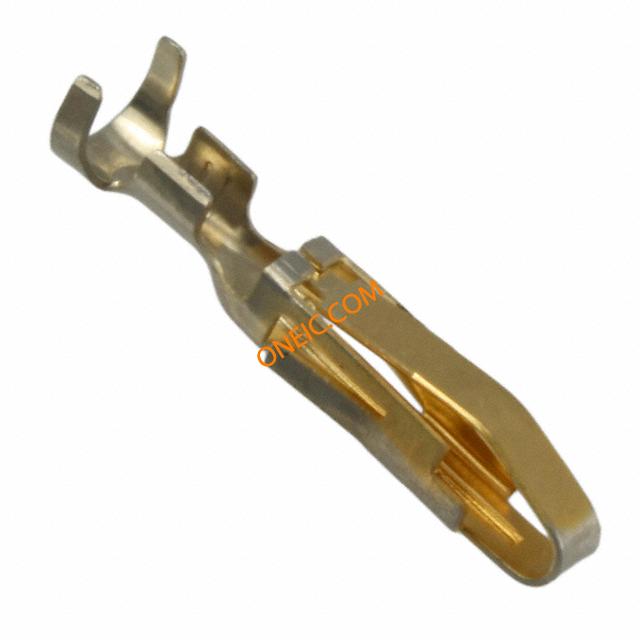

170485-1
| 制造商 | |
| 描述 | Contact M/F Crimp ST Cable Mount Loose Piece Drawer Connectors CONN HERMAPHRODITIC 20-16AWG Drawer,contact,hermaphrodtc,0.50-1.40mm2 Heavy Duty Power Connectors DRAWER CONN LP Contact PIN/SKT Crimp ST Cable Mount Loose Piece Contact PIN/SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactHermaphroditicWire Range = 0.50-1.40² [20-16] mm [AWG]Insulation Diameter = 1.80 - 3.30 mmLoose PieceSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, TE Connectivity 公插至母座 印刷电路板连接器触点, 压接, 镀金镀镍触点 DRAWER CONN LP |
| 分类 |
商业参数
| 其他名称 | 1704851 | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 供电电压 | 250 | 连接器阻抗 | 压接 |
| 最大额定电流 | 7 | 输出高/低电流 | No |
机械参数
| 宽度 | .126 英寸, 3.2 mm | 高度 | 3.7 mm [ .1457 in ] |
| 长度 | 21 mm [ .8268 in ] | 包装方式 | Bulk |
| 电缆类型 | 绞线 | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Non-Gendered | 电缆直径 | 992.68 – 2802.41 |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 线槽类型 | 直式 | 插入件材料 | 磷青铜 |
| 插入力 | Male, Female | 触头材料 | Phosphor Bronze |
| 壳体材料 | 压接扣入式 | 框架材料 | 镍 |
| 包装数量 | Loose Piece | 端接排数 | 压接 |
| 端接样式 | Crimp | 导体材料 | 铜 |
| 接触件端接 | Crimp | 绝缘直径 | 1.80 â 3.30 [0.071 â 0.130] |
| 触头长度-柱 | 信号（数据）/电源 | 线规或范围 - AWG | 20-16 |
| 线规或范围 - mm² | 0.50-1.40² [20-16] | 护套（绝缘）厚度 | .3 µm, 11.81 µin |
产品信息
| 类型 | Signal | 连接器性别 | M/F |
| 系列 | Drawer | 产品子类型 | Contact |
| 抽屉总数 | 小型电源 | ||
环境参数
| 工作温度 | -30 – 105 | ||
文档与媒体
相关型号
