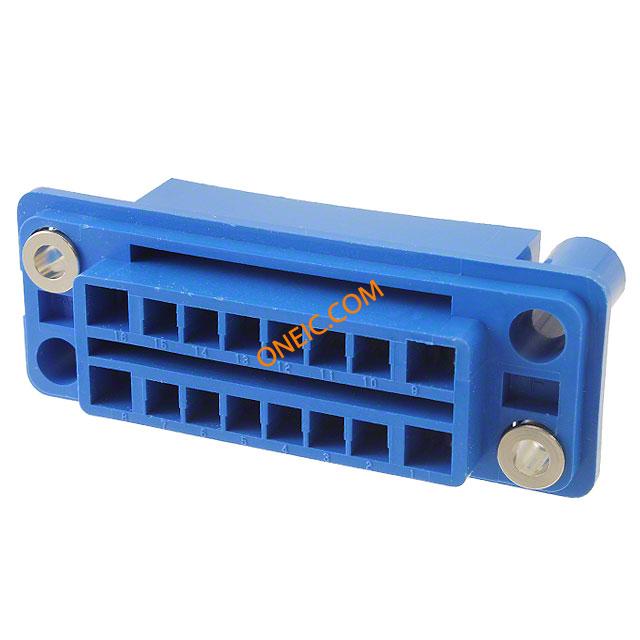

5172068-3
| 制造商 | |
| 描述 | Conn Housing RCP 16 POS 5mm Crimp ST Panel Mount Drawer Connectors CONN RCPT HOUSING 16POS PNL MNT Heavy Duty Power Connectors DRAWER CONN FEM ASSY 16P Drawer Connectors Product Highlights:HousingReceptacleDrawer Style = StandardNumber of Positions = 16Not PreloadedSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, DRAWER CONN FEMALE ASSY16P |
| 分类 |
商业参数
| 标准包装规格 | 120 | 标准包装数量 | Bulk |
| 工厂包装数量 | 120 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 | 连接器阻抗 | 压接 |
| 输出高/低电流 | No | ||
机械参数
| 颜色 | Blue | 间距 | 5 mm |
| 宽度 | 25 | 高度 | 26.3 mm [ 1.035 in ] |
| 长度 | 71.2 mm [ 2.8 in ] | 包装方式 | Bulk |
| 壳体颜色 | 蓝色 | 导线线规 | 14-24 AWG |
| 排间距 | 9.9 | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | Blindmate |
| 安装样式 | 不带 | 排数 | 2 |
| 连接器样式 | Drawer | 连接器用途 | Receptacle |
| 插入力 | Female | 面板厚度 | 1.60 [0.063] |
| 螺钉头类型 | 微型电源 | 壳体材料 | PBT |
| 触点数 | 16 | 位数 | 16 |
| 安装孔直径 | 带有 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 料盒尺寸 | 4.00 [0.157] |
| 预加载 | No | 产品子类型 | Housing |
| 抽屉总数 | Standard | 列数 | 8 |
| 其他规格 | 6.6 | ||
环境参数
| 工作温度 | -20 – 120 | ||
