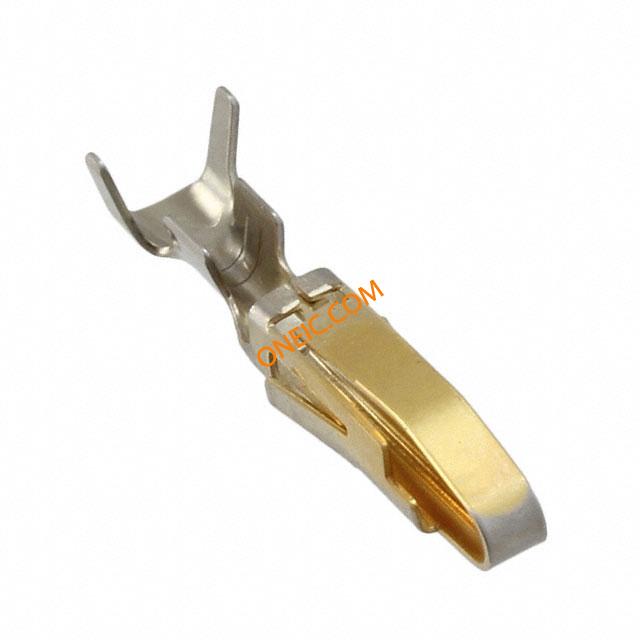

170484-1
| 制造商 | |
| 描述 | Contact Crimp ST Cable Mount Strip Drawer Connectors CONTACT FOR DRAWER CONNECTOR Heavy Duty Power Connectors CONTACT F. DRAWER CONN Drawer Connectors Product Highlights:ContactHermaphroditicWire Range = 0.50-1.40² [20-16] mm [AWG]Insulation Diameter = 1.80 - 3.30 mmPackaging Method = StripSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, |
| 分类 |
商业参数
| 其他名称 | A111046CT | 标准包装规格 | 4,000 |
| 标准包装数量 | Tape & Reel | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 供电电压 | 250 | 连接器阻抗 | 压接 |
| 最大额定电流 | 7A | 输出高/低电流 | No |
机械参数
| 间距 | 11 mm [ .433 in ] | 宽度 | .126 英寸, 3.2 mm |
| 高度 | 3.7 mm [ .1457 in ] | 长度 | 20.1 mm [ .791 in ] |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 绞线 |
| 导线线规 | 16-20 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Non-Gendered |
| 电缆直径 | 992.68 – 2802.41 | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 线槽类型 | 直式 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | 压接扣入式 | 框架材料 | 镍 |
| 包装数量 | Strip | 端接样式 | 插针/插座, 无极性 |
| 导体材料 | 铜 | 接触件端接 | Crimp |
| 绝缘直径 | 1.80 â 3.30 [0.071 â 0.130] | 触头长度-柱 | 信号（数据）/电源 |
| 接触镀层厚度 | 8µin (0.20µm) | 线规或范围 - mm² | 0.50-1.40² [20-16] |
| 护套（绝缘）厚度 | .3 µm, 11.81 µin | ||
产品信息
| 备注 | 护套部件号：172050、172061、172063、172068、172069、172070 | 类型 | Signal |
| 连接器性别 | Hermaphroditic | 产品子类型 | Contact |
| 抽屉总数 | 小型电源 | ||
环境参数
| 工作温度 | -30 – 105 | ||
