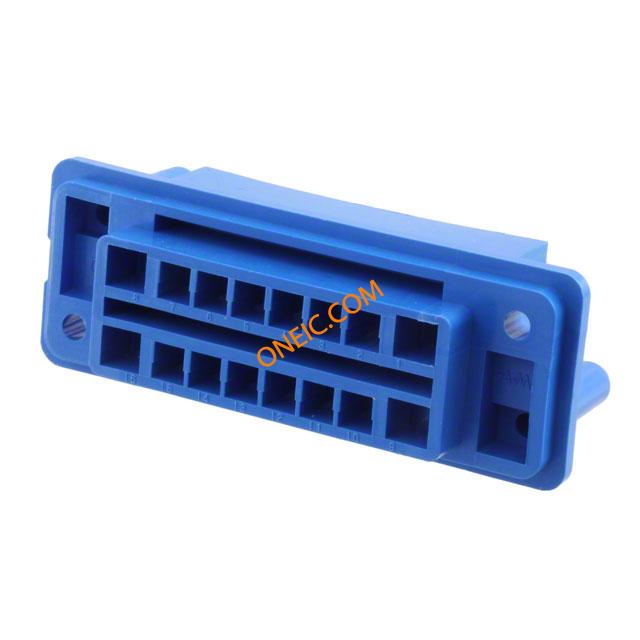

172059-1
| 制造商 | |
| 描述 | Conn Housing PL 16 POS Crimp ST Drawer Connectors MALE HSG DRAWER Heavy Duty Power Connectors MALE HSG DRAWER Conn Housing PL 16 POS Crimp ST Product Highlights:HousingPlugDrawer Style = StandardNumber of Positions = 16Not PreloadedSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Not applicable / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 | 连接器阻抗 | 压接 |
| 最大额定电流 | 15 | 输出高/低电流 | No |
机械参数
| 颜色 | Blue | 间距 | 0.197" (5.00mm) |
| 宽度 | 32.5 | 高度 | 26.3 mm [ 1.035 in ] |
| 长度 | 71.2 mm [ 2.8 in ] | 包装方式 | Bulk |
| 导线线规 | 14 – 24 | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | Blindmate |
| 法兰特征 | 否 | 安装样式 | 不带 |
| 排数 | 2 | 连接器样式 | Drawer |
| 连接器用途 | Plug | 插入件材料 | 磷青铜 |
| 面板厚度 | 1.60 [0.063] | 壳体材料 | PBT |
| 面板安装类型 | 带有 | 端接样式 | 插针 |
| 触点数 | 16 | 位数 | 16 |
| 触头长度-柱 | 电源 | 安装孔直径 | 3.30 [.130] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品特性 | Guide Pin |
| 预加载 | No | 产品子类型 | Housing |
| 抽屉总数 | Standard | 列数 | 8 |
| 其他规格 | 6.6 | ||
环境参数
| 工作温度 | -20 – 120 | ||
