172063-3
| 制造商 | |
| 描述 | Conn Housing PL 8 POS Crimp ST Lower Power Drawer - AMP DRAWER CONN 8P MALE Power to the Board DRAWER CONN 8P MALE Drawer Connectors Drawer Connectors Product Highlights:HousingPlugDrawer Style = StandardNumber of Positions = 8Not PreloadedSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, |
| 分类 |
商业参数
| 标准包装规格 | 180 | 标准包装数量 | Bulk |
| 工厂包装数量 | 180 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 | 连接器阻抗 | 压接 |
| 最大额定电流 | 15 | 输出高/低电流 | No |
机械参数
| 颜色 | Blue | 间距 | 5 mm [ .197 in ] |
| 宽度 | 32.5 | 高度 | 26.3 mm [ 1.035 in ] |
| 长度 | 51.2 mm [ 2.02 in ] | 包装方式 | Bulk |
| 导线线规 | 14 – 24 | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | Housing |
| 法兰特征 | 否 | 安装样式 | 不带 |
| 排数 | 2 | 连接器样式 | Drawer |
| 连接器用途 | Plug | 插入件材料 | 磷青铜 |
| 面板厚度 | 1.6 | 壳体材料 | PBT - GF |
| 面板安装类型 | 带有 | 端接样式 | 插针 |
| 触点数 | 8 | 位数 | 8 |
| 触头长度-柱 | 电源 | 安装孔直径 | 4.30 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品特性 | Guide Pin |
| 预加载 | No | 制造商全称 | AMP |
| 产品子类型 | Connector | 抽屉总数 | Standard |
| 列数 | 4 | 其他规格 | 6.6 |
环境参数
| 工作温度 | -20 – 120 | ||
文档与媒体
相关型号

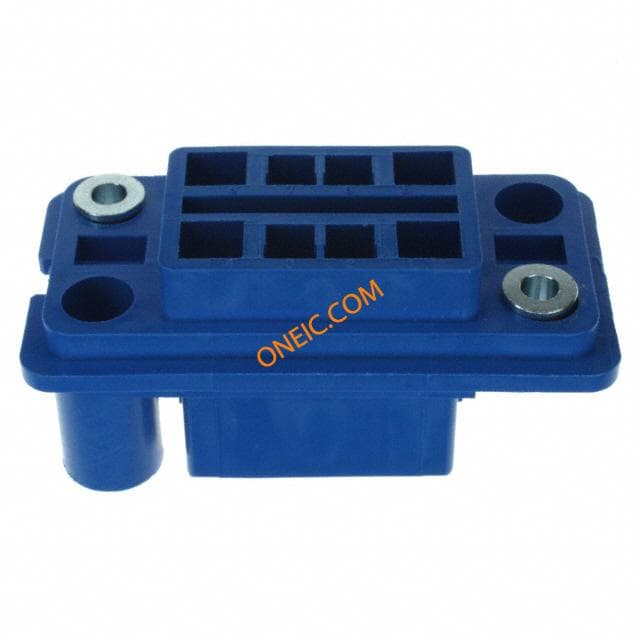

172070-1
te connectivity / amp
Conn Housing RCP 8 POS Crimp ST Panel Mount CONN RECEPT 8 POS BLUE PANEL MT

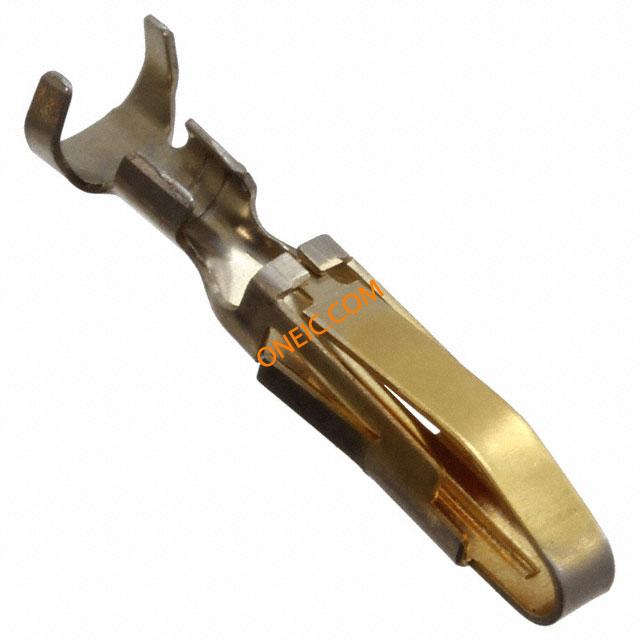

170311-1
te connectivity / amp
Contact M/F Crimp ST Cable Mount Strip Drawer Connectors CONN CONTACT 20-24AWG GOLD CRIMP Contact,crimp,hermaphroditic,24-20awg Power to the Board CONTACT DRAWER CONN CONTACT 20-24 AWG AU Contact PIN/SKT Crimp ST Cable Mount Strip Contact PIN/SKT Crimp ST Cable Mount Strip Product Highlights:ContactHermaphroditicWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.50 - 1.95 mmPackaging Method = StripSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, TE Connectivity Low Power Drawer 系列 公插至母座 压接接线端子, 压接, 镀金镀镍触点 CONTACT FOR DRAWER CONN
172653-2
te connectivity / amp
Conn Drawer Connector PL 8 POS 5mm Solder ST Thru-Hole 8 Terminal 1 Port Drawer Connectors DRAWER CONNECTOR MALE ASSY 8 P Power to the Board DRAWER CON ML ASY 8P Conn Drawer Connector PL 8 POS 5mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:HousingPlugDrawer Style = HybridNumber of Positions = 8PreloadedSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, null

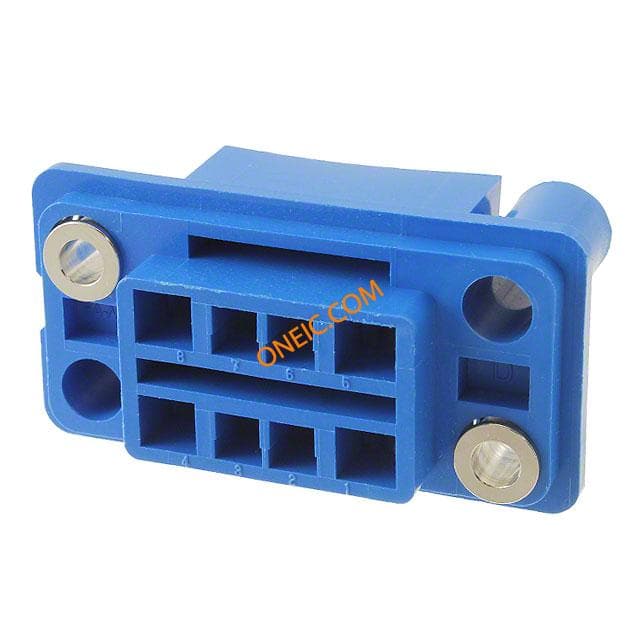

5172070-3
