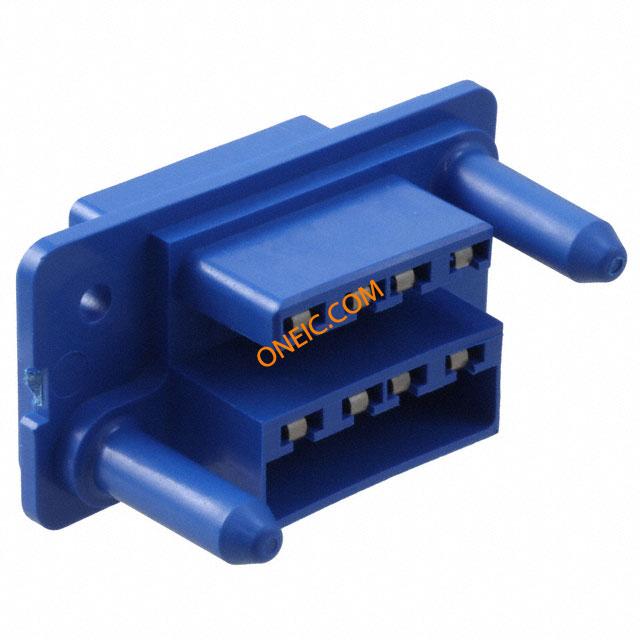

172653-2
| 制造商 | |
| 描述 | Conn Drawer Connector PL 8 POS 5mm Solder ST Thru-Hole 8 Terminal 1 Port Drawer Connectors DRAWER CONNECTOR MALE ASSY 8 P Power to the Board DRAWER CON ML ASY 8P Conn Drawer Connector PL 8 POS 5mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:HousingPlugDrawer Style = HybridNumber of Positions = 8PreloadedSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, null |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 15 A |
| 最小供电电压 | 250VAC | 输出高/低电流 | No |
机械参数
| 颜色 | Blue | 深度 | 26.3 mm |
| 间距 | 5 mm | 高度 | 32.5 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 外壳颜色 | Blue | 安装类型 | Through Hole |
| 连接器类型 | Blindmate | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 2 |
| 连接器样式 | Drawer | 触头材料 | Phosphor Bronze |
| 壳体材料 | PBT - GF | 总长度 | 18.44 mm |
| 触点数 | 8 | 位数 | 8 |
产品信息
| 备注 | To ensure proper contact alignment, connectors must be mated during the solderi | 类型 | Drawer Connector |
| 连接器性别 | PL | 产品特性 | Guide Pin |
| 预加载 | Yes | 产品子类型 | Housing |
| 抽屉总数 | Hybrid | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -20°C ~ 120°C | 结工作温度 | 120C |
