3-647003-8

点击放大查看

3-647003-8

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount Headers & Wire Housings 08P MTA100 PSTD CONN ASSY LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 8POS 28AWG .100 GREEN 08P MTA100 PSTD CONN ASSY LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量100

合规参数

RoHSRoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC供电电压250
额定交流电压250连接器阻抗IDC
最大额定电流5

机械参数

颜色Green间距2.54 mm
高度12.55 mm [ .494 in ]长度22.86 mm [ .9 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
电缆类型分离式导线, 绞线导线线规28
端接方式IDT触头类型Male Pin
第二连接器Without外壳颜色Green
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Tin触点时序Without
安装样式Wire排数1
壳体镀层Nickel连接器用途Receptacle
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon安装特性Without
包装数量100面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向Without
触点数8端接表面处理带有
绝缘直径1.52 mm [ .06 in ]位数8
兼容外壳尺寸（如TM-700等）标准 MTA .100 连接器，仅带有极化公端电路尺寸 4 - 19，没有极化公端电路尺寸 2 和 3触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.08-0.09² [28]
静电放电屏蔽带有护套（绝缘）厚度.762 µm, 30 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型Receptacles / Sockets - Housings
连接类型Wire跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

相关型号

3-640440-8

3-640440-8

te connectivity / amp

Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 22AWG MTA100 8 way MTA cable mount skt,2.54mm 22awg Headers & Wire Housings CLOSED W/O TABS 8P RED TIN 22AWG Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 22AWG, 8WAY IDCReceptacle,Closed-EndWithoutPolarizingTab,22AWG,Red,8pos. Connector: wire-board; MTA-100; plug; female; PIN:8; tinned; 2.54mm Cable socket, straight 8P, 3-640440-8, TE Connectivity TE Connectivity MTA-156 系列 8路 2.54mm节距 直角 电缆安装 母 IDC 连接器 08P MTA100 CONN ASSY 22AWG RED

¥1.2396
详情
640442-8

640442-8

te connectivity / amp

Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 26AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 8P blue tin 26 AWG Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector8 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA100 CONN ASSY BLU

¥1.4416
详情
3-640442-8

3-640442-8

te connectivity / amp

Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 26AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 8P blue tin 26 AWG Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 26AWG, 8WAY 08PMTA100CONNASSYBLU 08P MTA100 CONN ASSY BLU

¥1.3464
详情

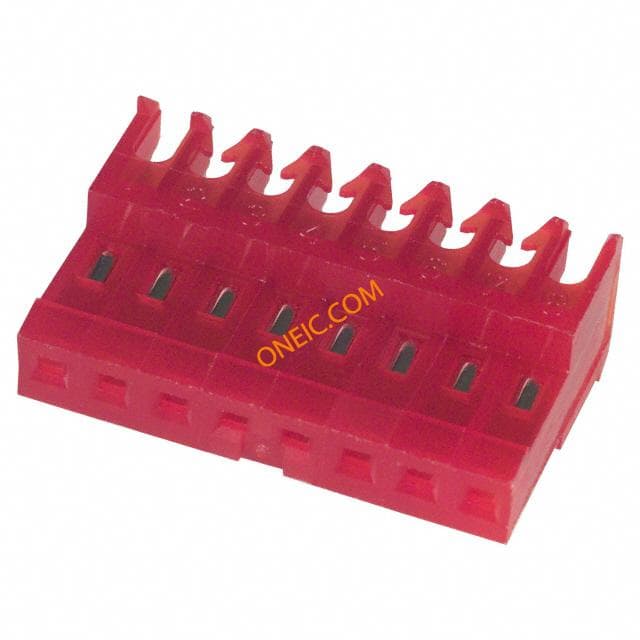

3-640620-8
