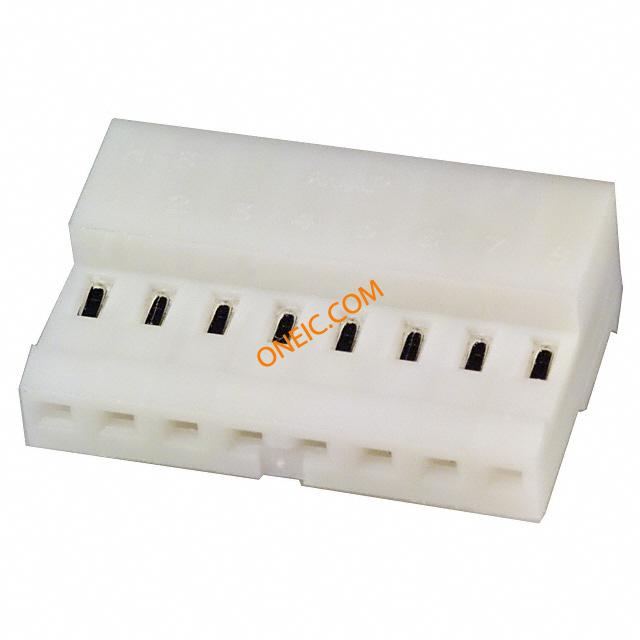

3-640441-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 24AWG MTA100 MTA 8 way cable SKT 2.54mm Headers & Wire Housings CLOSED W/O TABS 8P white tin 24 AWG Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector8 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 24AWG, 8WAY Connector;ClosedEnd;8;0.100in.;24AWG Cable socket, straight 8P, 3-640441-8, TE Connectivity TE Connectivity MTA-100 系列 8路 2.54mm节距 直角 电缆安装 母 IDC 连接器 08P MTA100 CONN ASSY WHT |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 量程（°/s） | :TE - MTA-100 Series | 额定电压 | 250 V ac |
| 开关功能 | Ramp Lock | 接触电阻 | 6 mohm |
| 额定交流电压 | 250 | 最大额定电流 | 5A |
| 最小供电电压 | 250VAC | 触点额定电流 | :4A |
机械参数
| 颜色 | White | 深度 | 6.99 mm |
| 间距 | 2.54 mm | 高度 | 13.21 mm |
| 重量 | 0.0147 | 包装方式 | Bulk |
| 遮蔽类型 | No | 导线类型 | Discrete or Ribbon Cable |
| 出线方向 | 90° | 导线线规 | 24 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 引脚间距 | :2.54mm | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Closed End |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | :Thermoplastic | 连接器用途 | Receptacle |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 总长度 | 20.32 mm | 安装特性 | Without |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 电缆端接方式 | IDC |
| 插针孔直径 | 0.1" | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Natural |
| 配接方向 | Without | 触点数 | 8 |
| 接触件端接 | :IDC / IDT | 绝缘直径 | 0.06"(Wire) |
| 位数 | 8 | 典型触点布局 | 2.54 [0.100] |
| 接触镀层厚度 | 80µin (2.03µm) | 恢复后小径 | No |
| 线规或范围 - mm² | 0.2² [24] | 第一连接器安装类型 | :PC Board |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-100 | 产品特性 | Closed End |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 连接类型 | Wire | 跳过的位置数 | None |
环境参数
| 工作温度 | -55to+105°C | ||
文档与媒体
相关型号
3-647009-8
te connectivity / amp
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 8POS 24AWG .100 WHITE
3-647011-8
te connectivity / amp
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 8POS 28AWG .100 GREEN

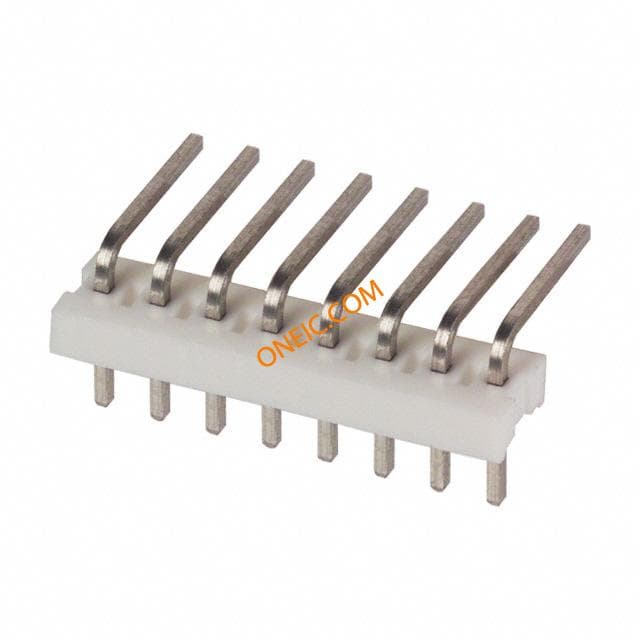

640453-8
te connectivity / amp
Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings FLAT HEADER 8P Right Angle Post tin Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 8WAY, 0.1IN Header;MTA-100;8;250VAC;Polyester;Tin;CopperAlloy;0.100in.;Tin;AMP TE Connectivity MTA-100 系列 2.54mm节距 8路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 08P MTA100 HDR ASSY SQ R/A
641212-8
te connectivity / amp
Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS R/A .100 30GOLD Headers & Wire Housings 08P MTA100 HDR ASSY PL RA 30AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Connector8 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

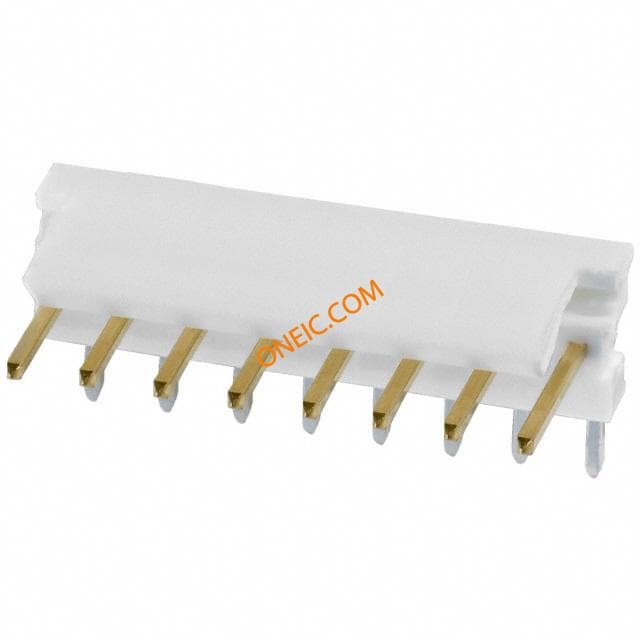

641216-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 8POS 30AU Headers & Wire Housings FRICTION LCK HDR 8P R.A. Post gold Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA100 HDR ASSY FL/RA 30AU
643606-7
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS VERT .100 TIN
3-641215-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .100 30AU Header Vert 8 way Pin MTA-100 Headers & Wire Housings FRICTION LCK HDR 8P Straight Post gold Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 8POS, 2.54MM MTA-100HEADERGOLD,08PMTA100HDRASSYFL/ST30AU TE Connectivity MTA-100 系列 2.54mm节距 8路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 08P MTA100 HDR ASSY FL/ST 30AU
641127-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS R/A .100 15GOLD
2-644861-8
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings HDR 08P VRT SHROUD MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .100 TIN Header 8 way pin 2.54mm MTA-100 Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 8POS, 2.54MM Header8waypin2.54mmMTA-100 TE Connectivity MTA-100 系列 8路 2.54mm节距 公 IDC 连接器 , 通孔 08P MTA100 SHRD HDR,W/O PEG SN
641214-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 8POS 30AU Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline Spacing
644875-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS R/A .100 TIN Headers & Wire Housings 08P MTA100 HDR ASSY F/L SP BND 08P MTA100 HDR ASSY F/L,SP BND 08P MTA100 HDR ASSY F/L,SP BND Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

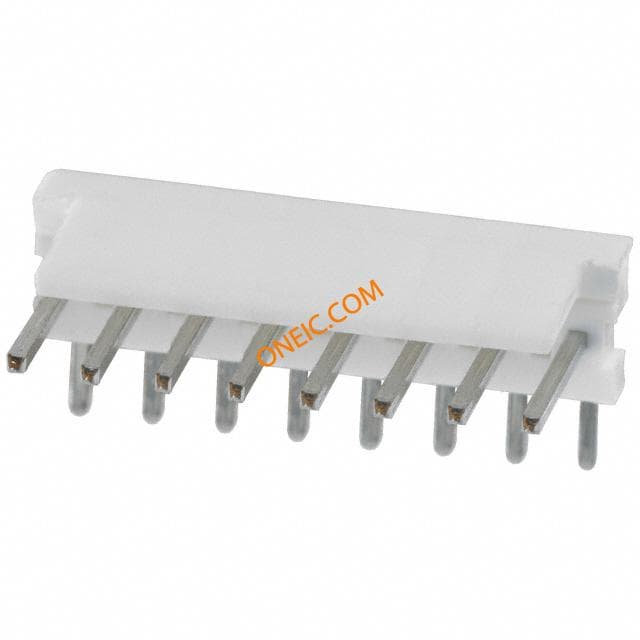

640455-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .100 TIN Headers & Wire Housings POLARIZED HEADER 8P Right Angle Post tin Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP TE Connectivity MTA-100 系列 2.54mm节距 8路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 08P MTA100 HDR ASSY SQ R/A POL
644874-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS VERT .100 TIN Headers & Wire Housings 08P MTA100 HDR ASSY SPCL BEND 08P MTA100 HDR ASSY,SPCL BEND 08P MTA100 HDR ASSY,SPCL BEND Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
647016-8
te connectivity / amp
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount Headers & Wire Housings 08P MTA100 PSTD CONN ASSY 15AU MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 8POS 22AWG MTA-100 08P MTA100 PSTD CONN ASSY 15AU 08P MTA100 PSTD CONN ASSY 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-644694-8
te connectivity / amp
Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .100 TIN Headers & Wire Housings HDR 8 POS R/A TIN Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector8 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA100 R/A HDR RETENTIVE

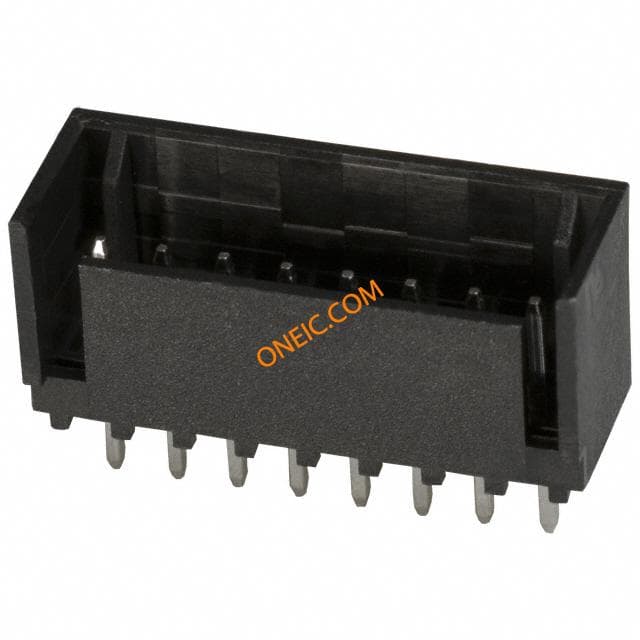

2-644486-8
