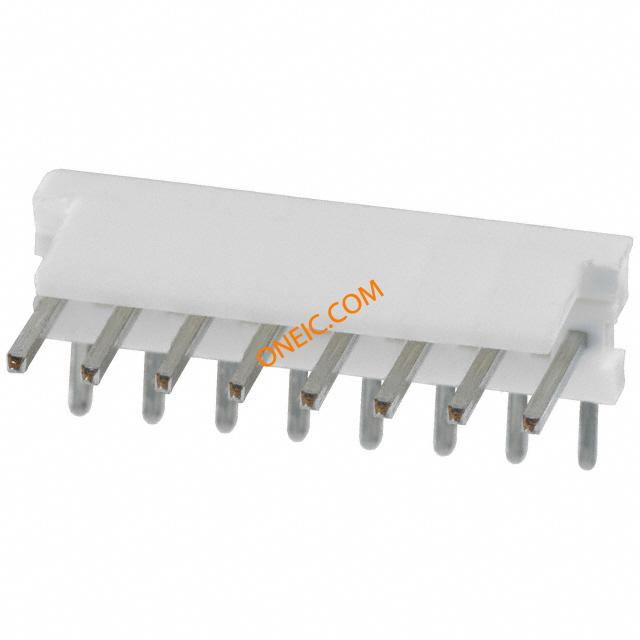

640455-8

点击放大查看

640455-8

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .100 TIN Headers & Wire Housings POLARIZED HEADER 8P Right Angle Post tin Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP TE Connectivity MTA-100 系列 2.54mm节距 8路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 08P MTA100 HDR ASSY SQ R/A POL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
接触电阻6 mohm额定交流电压250
连接器阻抗焊接最大额定电流5 A
最小供电电压250VAC

机械参数

颜色Natural深度11.05 mm
间距2.54 mm高度5.72 mm
长度20.32 mm [ .8 in ]包装方式Bulk
遮蔽类型No壳体颜色自然
方向直角端接方式Solder
触头类型Male Pin第二连接器Without
触点形状Square外壳颜色White
安装类型Right Angle连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
安装样式Through Hole排数1
壳体镀层Tin外壳材料（壳体）极化
连接器用途Header插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
总长度20.32 mm安装特性Without
包装数量1面板安装类型Without
尺寸/外形0.64 [.025]端接排数焊接
端接样式Through Hole第一触头极性Pin (Male)
配接方向With触点数8
端接表面处理不带位数8
后壳中断功能Without兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱3.56 mm [ .14 in ]安装孔直径不带
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
表面贴装焊盘尺寸Without端子柱长度3.56 [0.140]
接触镀层厚度3.81 µm [ 150 µin ]恢复后小径No
静电放电屏蔽不带直角致动器长度Front
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100覆盖范围无覆盖
产品特性Polarizing Key可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度-55C to 105C封装热阻1.6 mm [ .063 in ]
