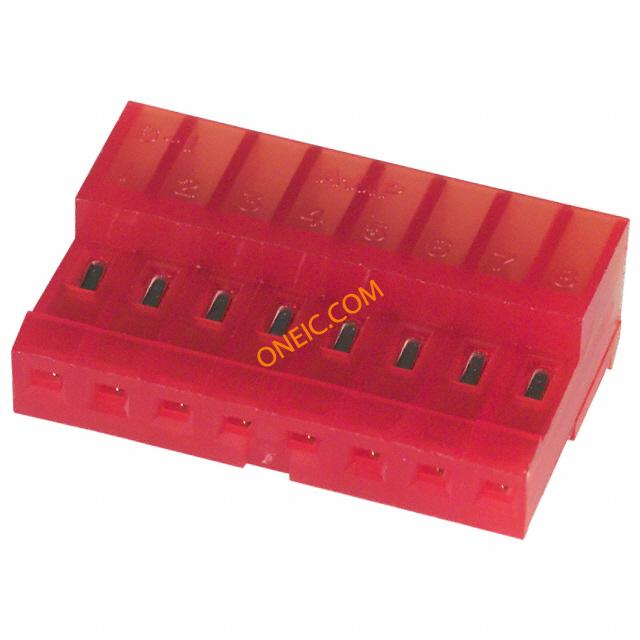

3-641534-8

点击放大查看

3-641534-8

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 22AWG MTA100 Headers & Wire Housings 3 POS RECPT 22 AWG Conn IDC Connector RCP 8 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA100 CONN ASSY 22AWG
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A34823产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
供电电压250额定交流电压250
连接器阻抗IDC最大额定电流5 A

机械参数

颜色Red间距2.54 mm
长度20.32包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
壳体颜色红色出线方向90°
电缆类型分离式导线, 绞线导线线规22 AWG
端接方式IDT触头类型Female Socket
第二连接器With外壳颜色Red
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Tin Over Nickel触点时序Without
紧固类型Locking Ramp安装样式Wire
排数1壳体镀层Nickel
连接器用途Receptacle高度（英寸）6.99
插入件材料铜合金触头材料Phosphor Bronze
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向Without
触点数8端接表面处理带有
绝缘直径1.52 mm [ .06 in ]位数8
兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]表面贴装焊盘尺寸Without
接触镀层厚度80µin (2.03µm)恢复后小径No
线规或范围 - mm²0.3-0.4² [22]静电放电屏蔽带有
护套（绝缘）厚度.762 µm, 30 µin

产品信息

备注LED connectors are designed to mate with 0.36-0.51 [.014-.020] diameter posts o类型IDC Connector
连接器性别RCP系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
3-641534-8?RQPN=3-641534-8
