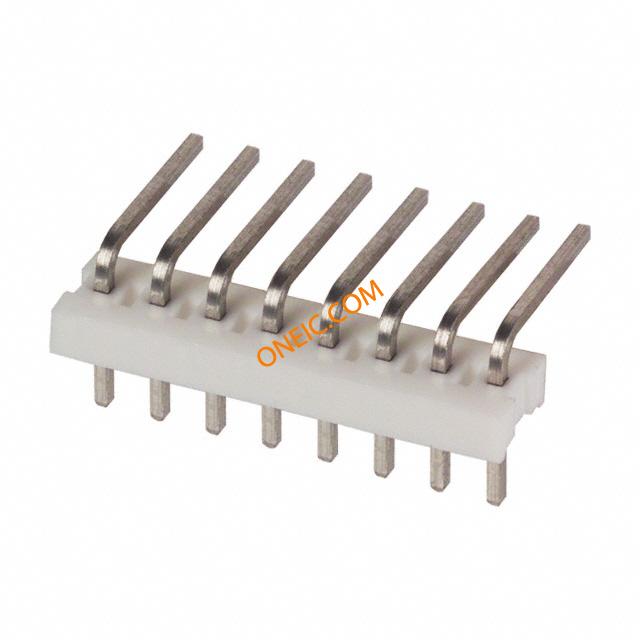

640453-8

点击放大查看

640453-8

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings FLAT HEADER 8P Right Angle Post tin Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 8WAY, 0.1IN Header;MTA-100;8;250VAC;Polyester;Tin;CopperAlloy;0.100in.;Tin;AMP TE Connectivity MTA-100 系列 2.54mm节距 8路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 08P MTA100 HDR ASSY SQ R/A
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS Compliant标准RoHSCompliant,ELVCompliant,UL94V-0
海关税号85366910无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认证机构CSA,ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac接触电阻6 mohm
额定交流电压250最大额定电流5A
最小供电电压250VAC

机械参数

颜色Natural深度12.57 mm
间距2.54 mm高度4.11 mm
重量0.0001包装方式Bulk
端口尺寸0.025in.遮蔽类型No
导线线规28-22端接方式Solder
触头类型Male Pin引脚长度（针脚）0.14"
第二连接器Without触点形状Square
外壳颜色White安装类型Right Angle
行程角度Right连接器类型Header, Unshrouded
接触镀层Tin Over Nickel安装样式Through Hole
排数1连接器用途Header
触头材料Copper Alloy壳体材料Polyester
总长度20.32 mm安装特性Without
面板安装类型Without主要材料InterconnectSystem
尺寸/外形0.64 [.025]插针孔直径0.1"
端接样式Through Hole第一触头极性Pin (Male)
配接方向Without触点数8
接触件端接:Through Hole Right Angle绝缘直径0.06"(SingleWire),0.05"(MassTerminationWires)
位数8后壳中断功能Without
中心触点镀层工艺0.100in.柱体长度（配合）0.14in.
安装孔直径0.04"典型触点布局2.54 [0.100]
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
端子柱长度3.56 [0.140]恢复后小径No

产品信息

类型Unshrouded Header连接器性别HDR
系列MTA-100产品特性IDC,Pinstrip
CAD图纸3D CAD Model制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55C to 105C
