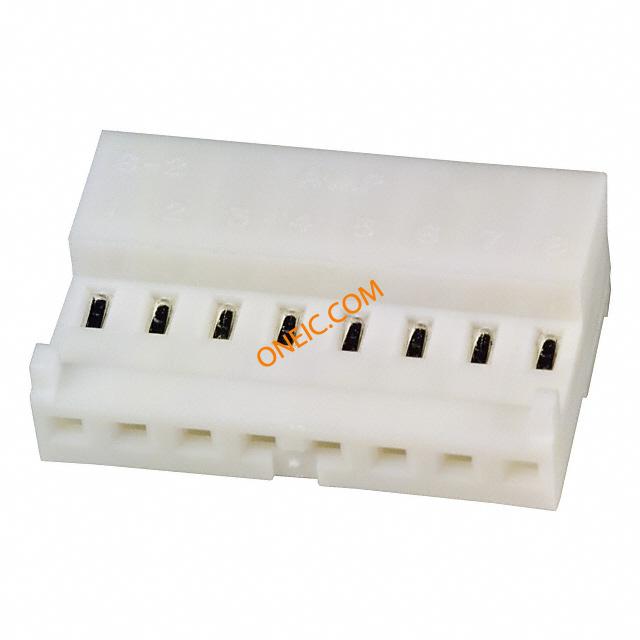

643814-8

点击放大查看

643814-8

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 24AWG MTA100 Headers & Wire Housings CLOSED WITH TABS 8P white tin 24 AWG Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:8 PositionsPreloadedHousing Gender = PlugContact Gender = ReceptacleConnector Style = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA100 CONN ASSY POL RIB
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态Not ELV/RoHS compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
供电电压250接触电阻6 mohm
额定交流电压250连接器阻抗IDC
最大额定电流5 A最小供电电压250VAC

机械参数

颜色White深度6.99 mm
间距2.54 mm高度13.21 mm
长度20.32包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
壳体颜色白色出线方向90°
电缆类型分离式导线, 绞线导线线规24 AWG
端接方式IDT触头类型Female Socket
极化Polarizing Tab第二连接器With
外壳颜色White安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin-Lead Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
外壳材料（壳体）标准连接器用途Receptacle
高度（英寸）6.99插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
总长度20.32 mm安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向With
触点数8端接表面处理带有
接触件端接Locking Lance绝缘直径1.52 mm [ .06 in ]
位数8兼容外壳尺寸（如TM-700等）MTA .100 头
触头长度-柱电源安装孔直径带有
接触件表面处理 - 配合锡铅典型触点布局2.54 [0.100]
表面贴装焊盘尺寸Without接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.2² [24]
静电放电屏蔽带有

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None
