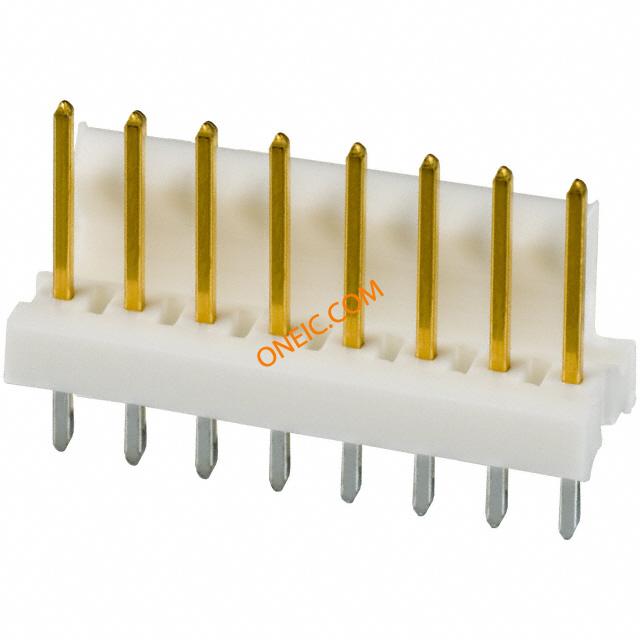

3-641215-8

点击放大查看

3-641215-8

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .100 30AU Header Vert 8 way Pin MTA-100 Headers & Wire Housings FRICTION LCK HDR 8P Straight Post gold Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 8POS, 2.54MM MTA-100HEADERGOLD,08PMTA100HDRASSYFL/ST30AU TE Connectivity MTA-100 系列 2.54mm节距 8路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 08P MTA100 HDR ASSY FL/ST 30AU
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - MTA-100 Series额定电压250 V ac
开关功能Friction Lock接触电阻6 mohm
额定交流电压250最大额定电流5A
最小供电电压250VAC连接器类型 - 电压输入Plug

机械参数

颜色Natural深度5.71 mm
间距2.54 mm高度10.03 mm
重量0.002包装方式Bulk
遮蔽类型No端接方式Solder
触头类型Male Pin第二连接器With
触点形状Square外壳颜色White
安装类型Vertical连接器类型Header, Unshrouded
接触镀层Gold Over Nickel紧固类型Friction Lock
安装样式Through Hole排数1
连接器用途Header锁定特性Friction Lock
触头材料Copper Alloy壳体材料Polyester
总长度20.32 mm安装特性Without
面板安装类型Without主要材料InterconnectSystem
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)连接器颜色White
配接方向Without触点数8
接触件端接:Through Hole Vertical位数8
后壳中断功能Without接触长度 - 配合0.295" (7.49mm)
触点材料 - 柱Copper Alloy端子柱长度3.56 [0.140]
接触镀层厚度30µin (0.76µm)恢复后小径No

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100极数格式8P
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度+105°C

文档与媒体

在线文档
TE.Connect?C=1&M=BYPN&TCPN=3-641215-8&RQPN=3-641215-8
在线文档
3-641215-8
