641653-8

点击放大查看

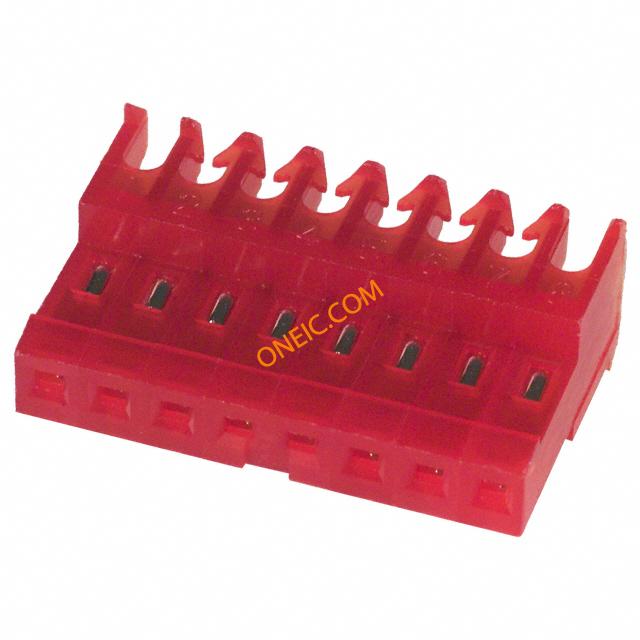

641653-8

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 8 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 08P MTA100 CONN ASSY MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 22AWG MTA100 Conn IDC Connector RCP 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA100 CONN ASSY F/T RED
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSNoUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态Not ELV/RoHS compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC供电电压250
额定交流电压250连接器阻抗IDC
最大额定电流5 A

机械参数

颜色Red间距2.54 mm
长度20.32包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
壳体颜色白色出线方向90°
电缆类型分离式导线, 绞线导线线规22
端接方式IDT触头类型Female Socket
第二连接器With外壳颜色Red
安装类型Free Hanging (In-Line)连接器类型Feed Thru
接触镀层Bright Tin-Lead触点时序Without
紧固类型Locking Ramp安装样式Wire
排数1连接器用途Receptacle
高度（英寸）7.75插入件材料铜合金
触头材料Phosphor Bronze壳体材料Nylon
安装特性Without包装数量Loose Piece
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数8
端接表面处理带有接触件端接Locking Lance
绝缘直径1.52 mm [ .06 in ]位数8
兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡铅
典型触点布局2.54 [0.100]表面贴装焊盘尺寸Without
接触镀层厚度80µin (2.03µm)恢复后小径No
线规或范围 - mm²0.3-0.4² [22]静电放电屏蔽带有

产品信息

备注LED connectors are designed to mate with 0.36-0.51 [.014-.020] diameter posts o类型IDC Connector
连接器性别RCP系列MTA-100
产品特性Feed Through可密封否
制造商全称AMP产品子类型Receptacles / Sockets - Housings
连接类型Wire跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
641653-8
在线文档
641653-8?RQPN=641653-8
