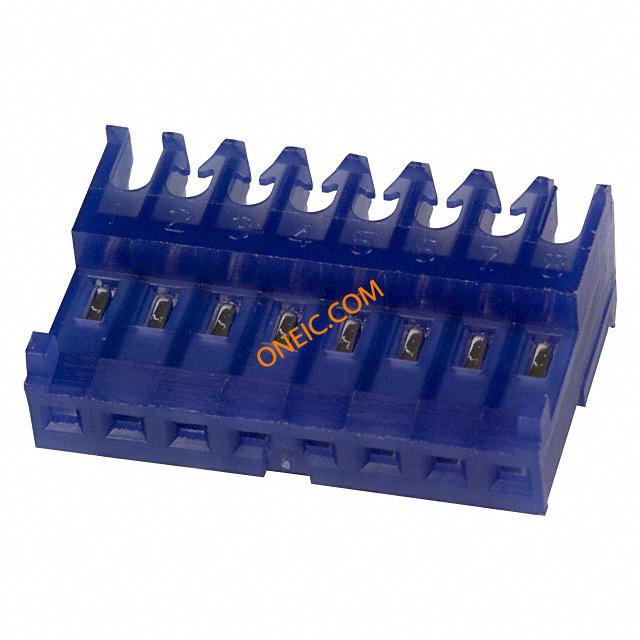

644564-8

点击放大查看

644564-8

制造商
TE Connectivity Ltd.
描述Headers & Wire Housings FEED THRU W/TAB 8P blue tin 26 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 26AWG MTA100
分类
连接器解决方案矩形连接器高可靠性矩形连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量500

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态Not ELV/RoHS compliant材料阻燃等级UL 94V-2

电气参数

额定交流电压250

机械参数

颜色Blue间距0.100" (2.54mm)
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable出线方向90°
导线线规26 AWG触头类型Female Socket
极化Polarizing Tab第二连接器With
外壳颜色Blue安装类型Free Hanging (In-Line)
连接器类型Feed Thru接触镀层Tin-Lead
紧固类型Locking Ramp排数1
连接器用途Receptacle触头材料Copper Alloy
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC配接方向With
触点数Without位数8
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.12-0.15² [26]

产品信息

产品特性Feed Through, Polarizing Key制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None
