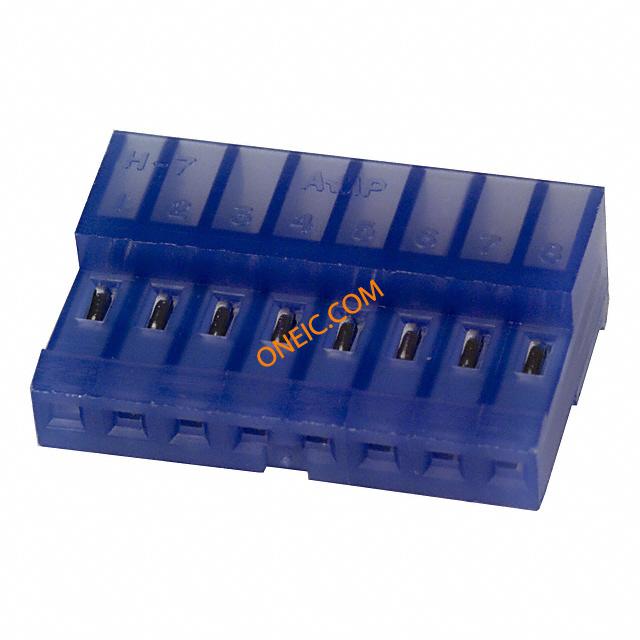

3-640442-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 26AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 8P blue tin 26 AWG Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 26AWG, 8WAY 08PMTA100CONNASSYBLU 08P MTA100 CONN ASSY BLU |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 量程（°/s） | :TE - MTA-100 Series | 额定电压 | 250 VAC |
| 开关功能 | Ramp Lock | 接触电阻 | 6 |
| 额定交流电压 | 250 | 最大额定电流 | 5 A |
| 最小输入电压 | 250VAC | 触点额定电流 | :4A |
机械参数
| 颜色 | Blue | 深度 | 6.99 |
| 间距 | 2.54 mm | 高度 | 13.21 |
| 重量 | 0.002 | 包装方式 | Loose Piece |
| 遮蔽类型 | No | 导线类型 | Discrete or Ribbon Cable |
| 出线方向 | 90° | 导线线规 | 26 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 引脚间距 | :2.54mm | 第二连接器 | With |
| 外壳颜色 | Blue | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Closed End |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | :Thermoplastic | 连接器用途 | Receptacle |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 总长度 | 0.8" | 安装特性 | Without |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 电缆端接方式 | IDC |
| 插针孔直径 | 0.1" | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Blue |
| 配接方向 | Without | 触点数 | 8 |
| 接触件端接 | :IDC / IDT | 绝缘直径 | 0.06"(Wire) |
| 位数 | 8 | 典型触点布局 | 2.54 [0.100] |
| 接触镀层厚度 | 80µin (2.03µm) | 恢复后小径 | No |
| 线规或范围 - mm² | 0.12-0.15² [26] | 第一连接器安装类型 | :PC Board |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-100 | 产品特性 | Closed End |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 连接类型 | Wire | 跳过的位置数 | None |
环境参数
| 工作温度 | -55to+105°C | ||
