205202-7

点击放大查看

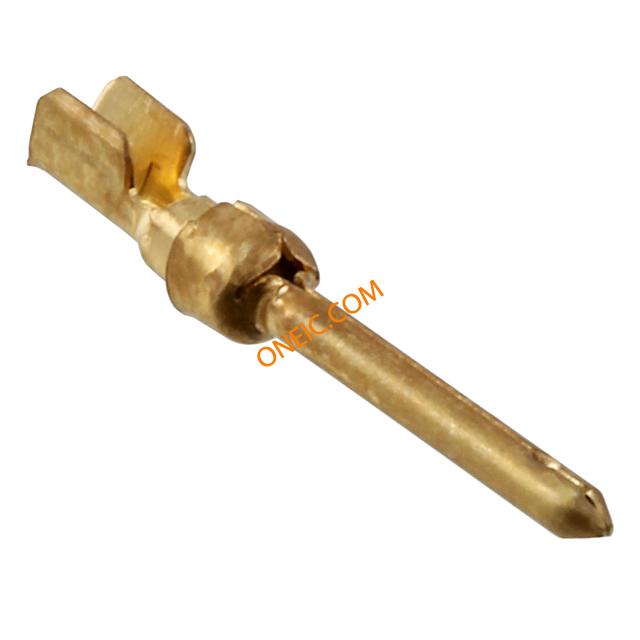

205202-7

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts HDP-20 PIN 24-20 Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 Pin Contact 24-20 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinBrass Contact Base MaterialWire Termination Type = CrimpSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D-SubConnector;Pin;24to20AWG;Crimp;0.068in.;GoldFlash;20;Standard HDP20 Series 20-24 AWG Gold Flash Crimp Pin D-Sub Contact PIN CONTACT L.P.
分类
连接器解决方案接触件接触件（通用）

商业参数

产品类别D-Sub Contacts标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

输入端.068连接器阻抗压接
连接器类型 - 电压输入Crimp

机械参数

镀层Gold材料（通用）Brass
包装方式Bulk导线线规24-20
端接方式Crimp触点尺寸20DF
触头类型Signal引脚直径1.02 [0.040]
插针或插孔Pin端子尺寸20
行程角度Straight连接器类型Connector D-Subminiature
接触镀层Gold Over Nickel插入件材料黄铜
材料表面处理Gold触头材料Brass
壳体材料压接扣入式包装数量Loose Piece
主要材料Contact绝缘高度No
端接样式Crimp第一触头极性Pin (Male)
连接器颜色红色接触件尾部长度20
接触件端接Crimp Snap-In绝缘直径0.068In.
镀层厚度（通用）Flash接触镀层厚度Flash
线规或范围 - AWG24-20线规或范围 - mm²0.2 - 0.6 [24-20]
触点材料 - 镀层GoldFlashoverNickel

产品信息

备注Wire insulation diameter is limited by the connector housing cavity and clearan类型Stamped
等级Standard连接器性别PIN
系列HDP-20制造商全称AMPLIMITEHDP-20
产品子类型Contact适用产品/相关产品HDP-20Conn.
