点击放大查看

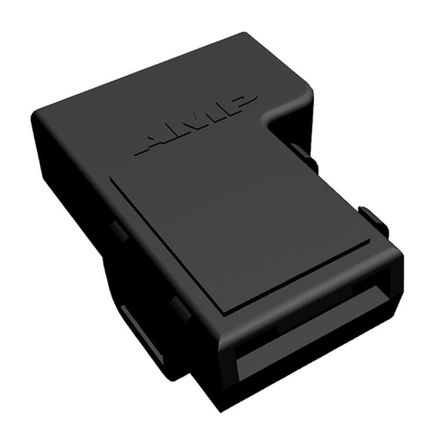

180984-5
| 制造商 | |
| 描述 | Connector Accessories Insulation Boot 1 POS Polyamide 6.6 Black Loose Piece Headers & Wire Housings FLAG BOOT BLK CONN BOOT FLAG 1POS .250 BLACK Connector Accessories Insulation Boot 1 POS Polyamide 6.6 Black Loose Piece Product Highlights:HousingNumber of Circuits = 1Tab Fit = 6.35 mmPolyamide 6.6 MaterialHousing Color = Black TE Connectivity 250 系列 1 触点 黑色 尼龙 66 压接端子外壳 FASTON 250 BOOT FLAG NYLON BLK |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Black | 深度 | 5.6 mm |
| 高度 | 14.2 mm | 长度 | 18.5mm |
| 材料（通用） | Nylon | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 外壳样式 | Without |
| 安装类型 | Free Hanging (In-Line), Right Angle | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器类型 | 安装片 |
| 封装形式 | Receptacle Housing | 增强颜色 | Without |
| 壳体材料 | Polyamide 6.6 | 总长度 | 18.5 mm |
| 主要材料 | 尼龙 66 | 端接样式 | 标记 |
| 触点数 | 1 | 接触件尾部长度 | 5.6mm |
| 位数 | 1 | 焊盘布局尺寸 | 14.7 x 5.6mm |
| 触点镀层厚度 - 柱 | 14.7mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Boot |
| 样式 | Boot | 连接器性别 | Female, Receptacle |
| 系列 | 250 | 产品子类型 | Accessories |
| 射频系列/标准 | 180984 | 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects, Flag |
环境参数
| 工作温度 | -25 – 105 °C [ -13 – 221 °F ] | ||
