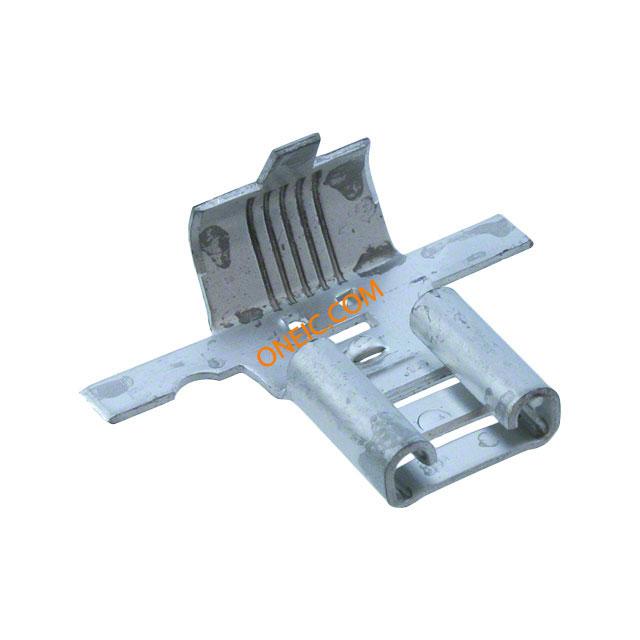

62056-4
| 制造商 | |
| 描述 | Quick Disconnect Terminal 12-18AWG RCP 17.01mm 8.12mm Tin Strip Terminals 18-12 AWG .250 RCPT FASTON Uninsulated Receptacles & Housings CONN RCPT FLG FAST 12-18AWG .250 Quick Disconnect Terminal 12-18AWG RCP 17.01mm 8.12mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = FlagNon-Insulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON .250 FLAG REC 18-12 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 4,000 | 工厂包装数量 | 4000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Open | 开关功能 | 快速连接 |
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 颜色 | Not Required | 深度 | 8.12 mm |
| 表面处理 | Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.46 [0.018] | 电缆类型 | Stranded |
| 绝缘类型 | Not Insulated | 插片长度 | 0.305" (7.75mm) |
| 导线线规 | 18-12 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Angled - 90°, Flag | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Flag |
| 箔压接区域 | Tab-Lok | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | Premier | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Non-Insulation Support |
| 端接样式 | Crimp | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 接触镀层厚度 | 40 |
| 线规或范围 - mm² | 0.80-3.00² [18-12] | 第二连接器安装特性 | Yes |
产品信息
| 备注 | Left hand | 类型 | Receptacle |
| 连接器性别 | Female | 系列 | 250 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
