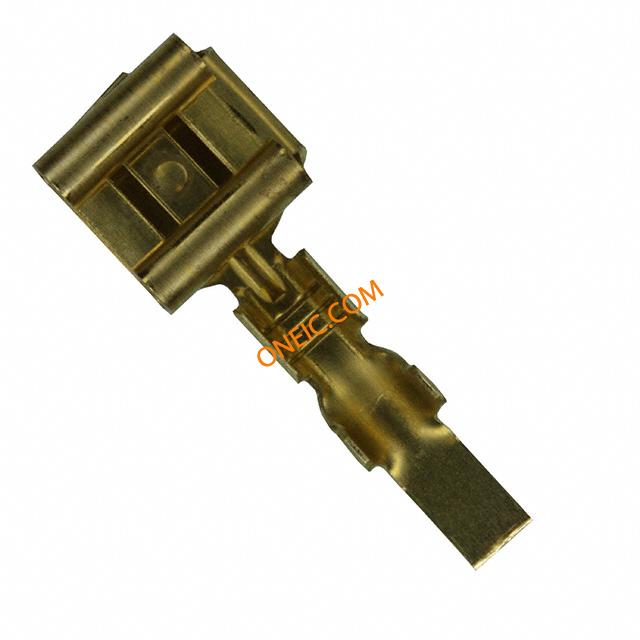

62048-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 18.03mm 8.76mm Strip Terminals .25 REV FLGFST 18-14 FASTON Uninsulated Receptacles & Housings CONN RCPT FLG FAST 14-18AWG .250 Quick Disconnect Terminal 14-18AWG RCP 18.03mm 8.76mm Strip Product Highlights:Product Classification = Connectors - Terminals and SplicesTerminalTerminal Type = ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON .250 FLAG REC 18-14 AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 13,000 | 工厂包装数量 | 6500 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 颜色 | Not Required | 深度 | 8.76 mm |
| 表面处理 | None | 材料（通用） | Brass |
| 包装方式 | Tape & Reel (TR) | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.41 [0.016] | 电缆类型 | Stranded |
| 绝缘类型 | Insulated | 插片长度 | 0.305" (7.75mm) |
| 导线线规 | 18-14 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line), Right Angle |
| 螺柱/焊片尺寸 | 6.35 mm x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Angled - 90°, Flag | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | 无镀层 |
| 连接器样式 | Reversible Flag | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | Premier | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 适用端子尺寸 | 2.3 – 3.3 mm [ .09 – .13 in ] |
| 绝缘直径 | 2.29-3.30 [.090-.130] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - mm² | 0.80-2.00² [18-14] |
| 第二连接器安装特性 | No | 外径-未扩张 | 3.3 mm [ .13 in ] |
产品信息
| 连接器性别 | Female | 系列 | 250 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
