60274-2
| 制造商 | |

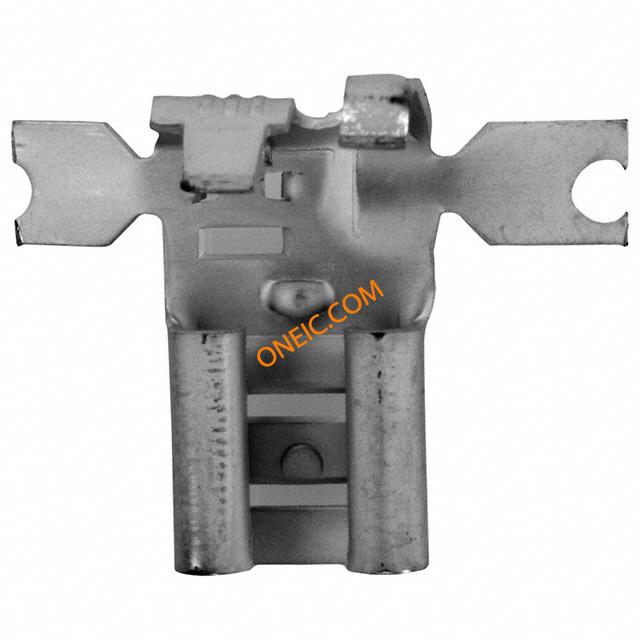

| 描述 | Quick Disconnect Terminal 12-18AWG RCP 17.01mm Tin Strip Terminals 250 FLG FAST RCPT LH FASTON Uninsulated Receptacles & Housings CONN RCPT FLG FAST 12-18AWG .250 60274-2 Quick Disconnect Terminal 12-18AWG RCP 17.01mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON 250 FLAG REC 18-12 AWG TPPHBZ |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 12,000 | 工厂包装数量 | 4000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 材料（通用） | Phosphor Bronze |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.46 [0.018] | 电缆类型 | Stranded |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.305" (7.75mm) |
| 导线线规 | 12-18 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line), Right Angle | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Angled - 90°, Flag | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 连接器样式 | Flag | 箔压接区域 | Tab-Lok |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 触头材料 | Phosphor Bronze | 总长度 | Premier |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 适用端子尺寸 | 2.79 – 5.33 mm [ .11 – .21 in ] | 绝缘直径 | 2.79-5.33 [.110-.210] |
| 绝缘材料 - 类型 | No | 总厚度 | .46 mm [ .018 in ] |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 接触镀层厚度 | 40 | 堆叠高度（配合） | .04 |
| 线规或范围 - mm² | 0.80-3.00² [18-12] | 第二连接器安装特性 | Yes |
| 外径-未扩张 | 5.33 mm [ .21 in ] | ||
产品信息
| 备注 | Left hand | 类型 | Flag Receptacle |
| 连接器性别 | Female | 系列 | 250 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
