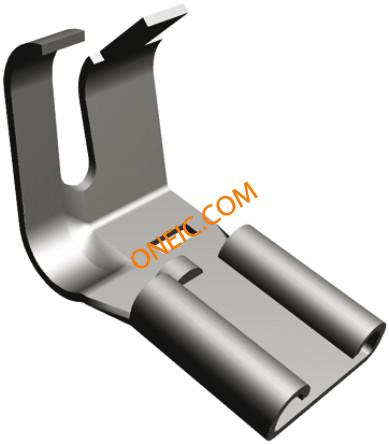

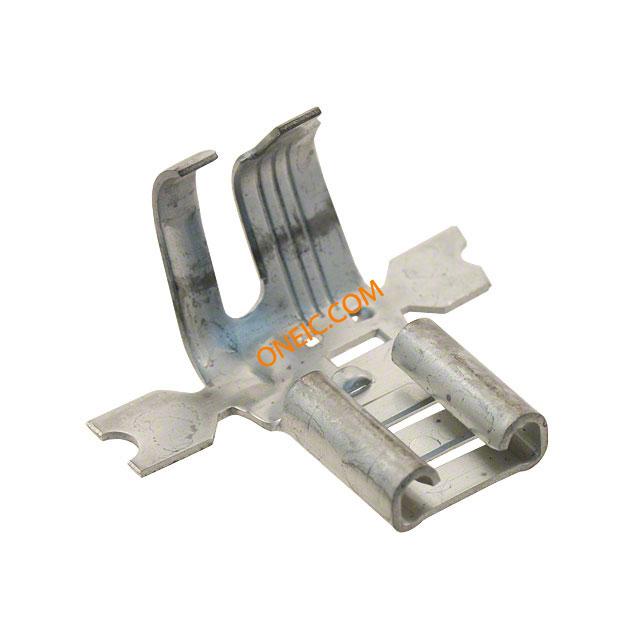

60851-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 10-12AWG RCP 17.02mm 9.91mm Tin Strip on Reel Terminals 250 FLG REC 12-10 FASTON Uninsulated Receptacles & Housings CONN RCPT FLG FAST 10-12AWG .250 Receptacle terminal, flag, FASTON 250 Quick Disconnect Terminal 10-12AWG RCP 17.02mm 9.91mm Tin Strip on Reel Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINAL, FLAG DISCONNECT, 0.25IN, CRIMP Flagreceptacle6.35x0.81mmFASTON Faston Series 12-10 AWG Receptacle Non-Insulation Tab-Lok Terminal TE Connectivity FASTON .250 系列 非绝缘 镀锡触芯 旗形压接端子 , 6.35 x 0.81mm FASTON 250 FLAG REC 12-10 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 3,500 | 工厂包装数量 | 3500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 深度 | 9.91 mm | 表面处理 | Tin |
| 重量 | 0.00001 | 材料（通用） | Brass |
| 包装方式 | Reel | 遮蔽类型 | Unshrouded |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.46 [0.018] |
| 电缆类型 | Stranded | 绝缘类型 | Not Insulated |
| 导线线规 | 12-10 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line), Right Angle |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Angled - 90°, Flag | 连接器类型 | :Flag Disconnect |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Flag | 箔压接区域 | Tab-Lok |
| 插入力 | Normal | 触头材料 | Brass |
| 绝缘颜色 | :Uninsulated | 总长度 | Premier |
| 包装数量 | Strip | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 绝缘直径 | 2.79-5.33 [.110-.210] |
| 线规或范围 - AWG | :12AWG | 线规或范围 - mm² | 3.00-6.00² [12-10] |
| 第二连接器安装特性 | Yes | ||
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 250 | 已删除 | Compliant |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
