点击放大查看

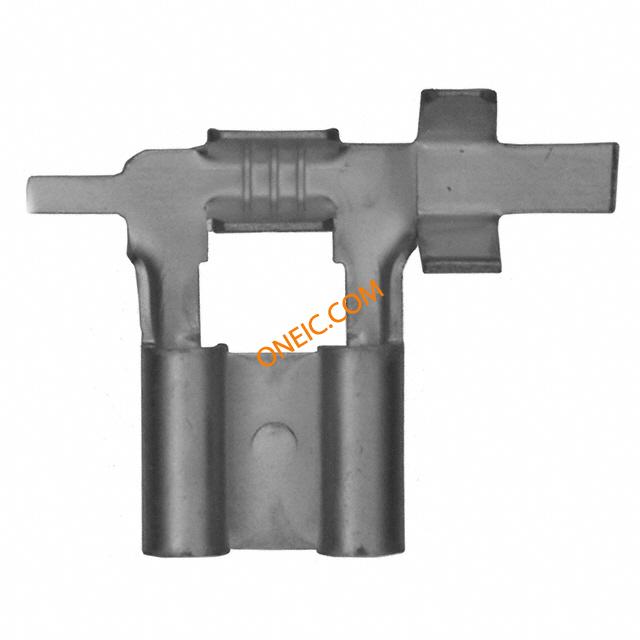

62813-2
| 制造商 | |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 13.71mm Strip Terminals 22-18 AWG .250 RCPT FASTON Uninsulated Receptacles & Housings CONN RECPT FLG FAST 18-22AWG.250 Quick Disconnect Terminal 18-22AWG RCP 13.71mm Strip Product Highlights:Product Classification = Connectors - Terminals and SplicesTerminalTerminal Type = ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONTACT, CRIMP, RECEPTACLE, 22-18AWG Terminal,Receptacle,FASTON,22-18AWG,F-Crimp,LeftHandedFlag FASTON 250 FLAG REC 22-18 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 12,000 | 工厂包装数量 | 12000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 量程（°/s） | :TE - FASTON 250 Series | 连接器类型 - 电压输入 | Without |
机械参数
| 颜色 | Not Required | 表面处理 | Tin |
| 长度 | 10.41 mm | 重量 | 0.005 |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.41 [0.016] |
| 电缆类型 | Stranded | 绝缘类型 | Not Insulated |
| 插片长度 | :0.25" x 0.032" | 导线线规 | 22-18 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 7.62 mm x 6.1 mm |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Angled - 90°, Flag |
| 连接器类型 | :Female Disconnect | 接触镀层 | Tin |
| 线束直径 | 0.9 mm | 连接器样式 | Flag |
| 箔压接区域 | F-Crimp | 插入力 | Normal |
| 触头材料 | Brass | 绝缘颜色 | :Uninsulated |
| 总长度 | Premier | 刀片材料 | :Brass |
| 包装数量 | Strip | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 绝缘直径 | 1.52-2.54 [.060-.100] |
| 绝缘材料 - 材质 | :Uninsulated | 线规或范围 - AWG | :22AWG |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | 第二连接器安装特性 | No |
产品信息
| 备注 | Left handed flag. | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
