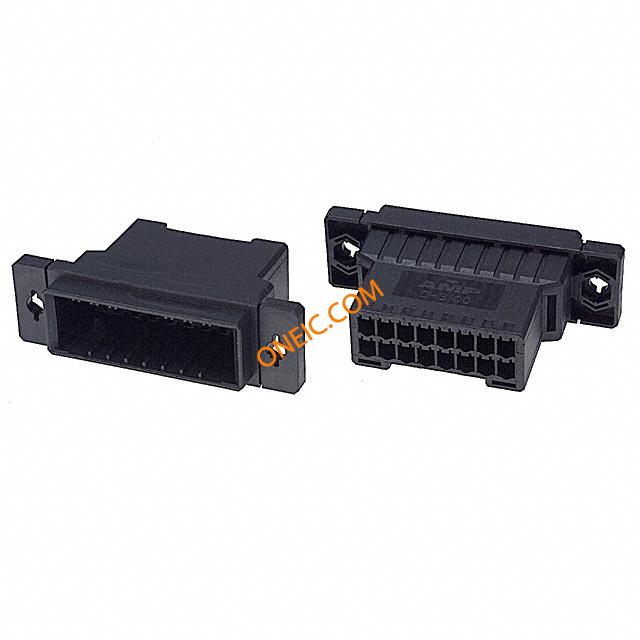

178803-7
| 制造商 | |
| 描述 | Conn Housing PL 16 POS 3.81mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN HOUSING TAB 16POS DUAL PANL Headers & Wire Housings 16 POS CAP HSG PANEL MOUNT Conn Housing PL 16 POS 3.81mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingTabNumber of Positions = 16Mount = Panel MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, PLUG AND SOCKET CONNECTOR HOUSING 3.81 DYNAMIC CAP HSG PANEL 16P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 120 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 开关功能 | Unlatched |
| 额定交流电压 | 250 | 最大额定电流 | 3 A |
| 额定交流电压（相间） | :250V | ||
机械参数
| 颜色 | Black | 间距 | 3.81 mm |
| 重量 | 0.00001 | 包装方式 | Bulk |
| 导线线规 | 16 AWG | 排间距 | 0.200" (5.08mm) |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Tin | 安装样式 | Panel |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic Polyester | 包装数量 | Bag |
| 第一触头极性 | Pin (Male) | 触点数 | 16 |
| 接触件端接 | Crimp | 位数 | 16 |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Housing is secured onto panel by push rivet | 类型 | Housing |
| 连接器性别 | PL | 系列 | D-3100D |
| 编码、键控 | No | 产品子类型 | Housing |
| 连接类型 | Wire | 适用产品/相关产品 | :D-3100D Dynamic Series Connectors |
