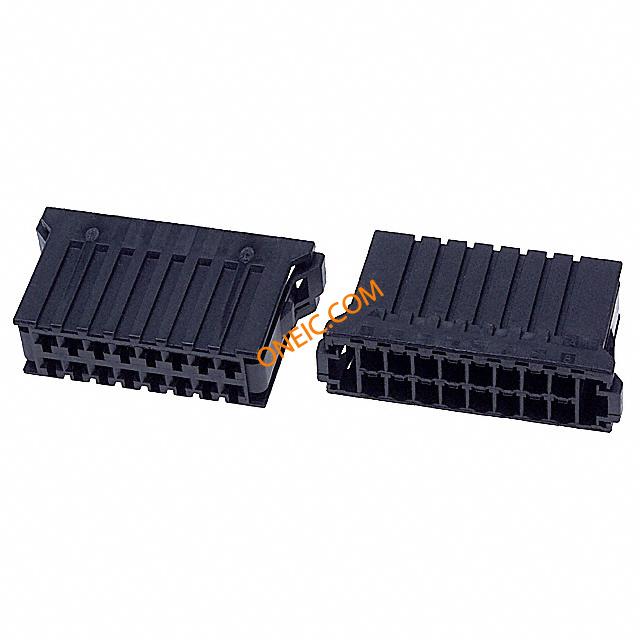

178289-7
| 制造商 | |
| 描述 | Conn Housing RCP 16 POS 3.81mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RECEPT 3.81 16POS 2ROWS Heavy Duty Power Connectors 16P RCPT HOUSING Conn Housing RCP 16 POS 3.81mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 16Not KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, RECEPTACLE, NYLON, 16WAY DYNAMICPOSTHEADER,DYNAMIC3100RECHSG16P Connector: wire-board; D-3100D; plug; female; w/o terminals; 250V DYNAMIC 3100 REC HSG 16P |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 额定交流电压 | 250 |
| 最大额定电流 | 10A | 最小供电电压 | 250VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 22.8 mm |
| 间距 | 3.81 mm | 高度 | 12.23 mm |
| 重量 | 0.00001 | 包装方式 | Bulk |
| 排间距 | 0.200" (5.08mm) | 触头类型 | Female Socket |
| 柱间距 | 3.81mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 安装样式 | Straight | 排数 | 2 |
| 插入力 | Female | 壳体材料 | Nylon |
| 总长度 | 42.71 mm | 包装数量 | Bag |
| 连接器 - 电缆 | plug | 端接样式 | Wire |
| 触点数 | 16 | 接触件端接 | Crimp |
| 位数 | 16 | 第一连接器安装特征 | 2x8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | D-3100D |
| 编码、键控 | No | 产品子类型 | Housing |
| 适配器系列 | D-3100D | 连接类型 | Wire |
| 单元数量 | 1 | 适用产品/相关产品 | :D-3000 Series Socket Contacts |
环境参数
| 工作温度 | -55C to 105C | ||
