点击放大查看
104346-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 6POS VERT PCB TIN Headers & Wire Housings 06 MODII HDR SRST B/A W/HD Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 6Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR SRST B/A W/HD |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 认可国家 | CSA LR7189, UL E28476 |
| 保护特性 | Without | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定交流电压 | 30 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 750 V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 排间距 | 2.54 mm |
| 稳定剂 | Without | 端接方式 | Solder |
| 触头类型 | Male Pin | 第一连接器 | 否 |
| 第二连接器 | Without | 触点形状 | Square |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Tin-Lead Over Nickel | 安装样式 | 标准 |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 安装特性 | 固定焊尾 | 包装数量 | 240 |
| 面板安装类型 | 通孔 | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 触点数 | 6 | 端接表面处理 | Matte Tin-Lead |
| 位数 | 6 | 柱体长度（配合） | 5.84 mm |
| 安装孔直径 | 不带 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 端子柱长度 | 3.05 mm | 接触镀层厚度 | 100µin (2.54µm) |
| 静电放电屏蔽 | 不带 | 端接镀层厚度 | 100 – 200 |
产品信息
| 备注 | 参考客户图纸以确定板保持尾部的数量和位置。其他尾部长度也可用，请咨询 AMP Incorporated。 | 类型 | Unshrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU MOD II |
| 钥匙类型 | 否 | 产品子类型 | Headers |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 温度 | No |
| 工作温度 | - 65 C to + 105 C | 封装热阻 | 1.57 mm [ .062 in ] |
文档与媒体
相关型号
103974-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .100 TIN Headers & Wire Housings 4X6 RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103978-5
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS .100 GOLD
103957-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 6POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 6P Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,4X6MTERCPTSRLATCH.100CL 4X6 MTE RCPT SR LATCH .100CL
104439-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS .100 22-26 30AU Headers & Wire Housings 4X6 MTE RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL
1-87175-4
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 LOCKING Headers & Wire Housings CONN HOUSING 6 POS SINGLE ROW Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE LOCKINGCLIP,AMPMODU,RECEPTACLE,6POSITIONSINGLEROW 06 LOCKING CLIP HSG SR .100CL
1-87175-3
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 LOCKING Headers & Wire Housings CONN HOUSING 6 POS SINGLE ROW Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 LOCKING CLIP HSG SR MRKD
103956-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 6POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 6P Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR LATCH .100CL
102241-4
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 POLAR 2.54mm,housing,6W,Mod IV,SR,snap in Headers & Wire Housings POLARIZED HSG 6 SNGL detent latching Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 6WAY Housing,Connector;ModIV;Single;6;250VAC;3A;750VYes Crimp housing Pitch2.54 mm Poles 6 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-4, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 6 路 直 母 电缆安装 PCB 壳体 06 MODIV HSG COMP SR .100 POL
535584-1
te connectivity / amp
Conn Socket Strip RCP 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Headers & Wire Housings 06 MODIV VRT SR CE 100/115 .100 inch AMPMODU Receptacles CONN RCPT 6POS VERT .100 .100 inch AMPMODU Receptacles Product Highlights:ReceptacleMod IVNumber of Positions = 6Number of Rows = SingleLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 06 MODIV VRT SR CE 100/115

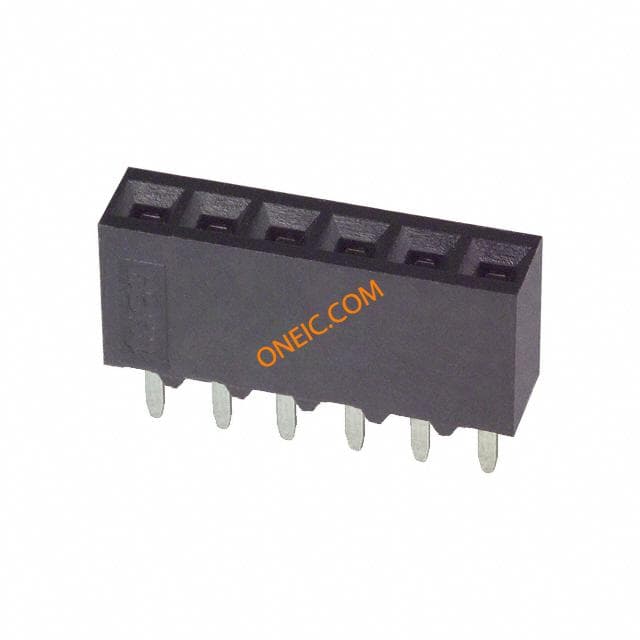

5-535541-4
te connectivity / amp
Conn Socket Strip RCP 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 6POS .100 VERT GOLD Conn Socket Strip RCP 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 6Number of Rows = SingleLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONN, RECEPTACLE, 6WAY, 1ROW 06 MODIV VRT SR CE 100/115
103961-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS .100 26-30 30GOLD Headers & Wire Housings 4X6 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR LATCH .100CL
5-103974-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .100 TIN Headers & Wire Housings 4X6 RCPT SR PLAIN .100CL Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR PLAIN .100CL
103688-5
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .1" UNLOAD Headers & Wire Housings HSG REC 1X06C STD Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MTE RCPT HSG SR PLAIN .100
5-103975-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .100 15AU Headers & Wire Housings 4X6 RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103975-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .100 15AU Headers & Wire Housings 4X6 RCPT SR PLAIN .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR PLAIN .100CL

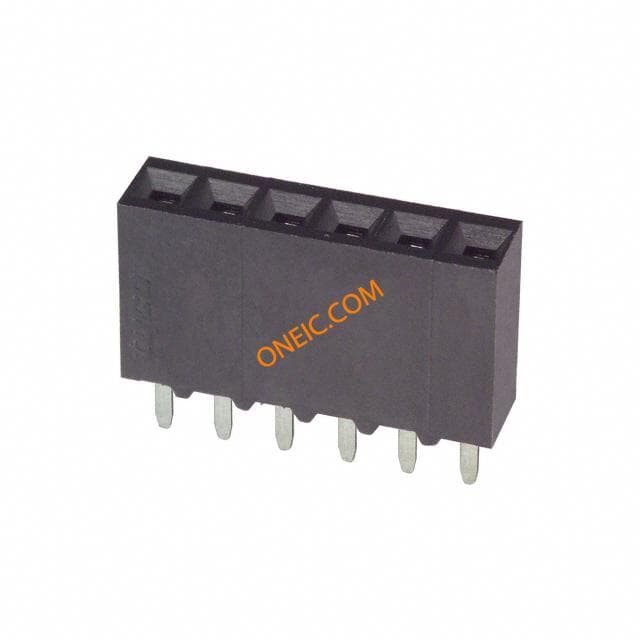

5-534237-4
te connectivity / amp
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 6POS .100 VERT GOLD Headers & Wire Housings REC 1X06P VRT T/H Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleMod IINumber of Positions = 6Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONN, RECEPTACLE, 6WAY, 1ROW AMPMODU MOD II 6 Position Single Row 2.54 mm Pitch Vertical Receptacle TE Connectivity AMPMODU Mod II 系列 6路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 06 MODII VRT SR CE 100/115
5-103956-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 6POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 6P Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM MTERECPASSY,4X6MTERCPTSRLATCH.100CL TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 6 路 直 母 电缆安装 PCB 连接器外壳 4X6 MTE RCPT SR LATCH .100CL

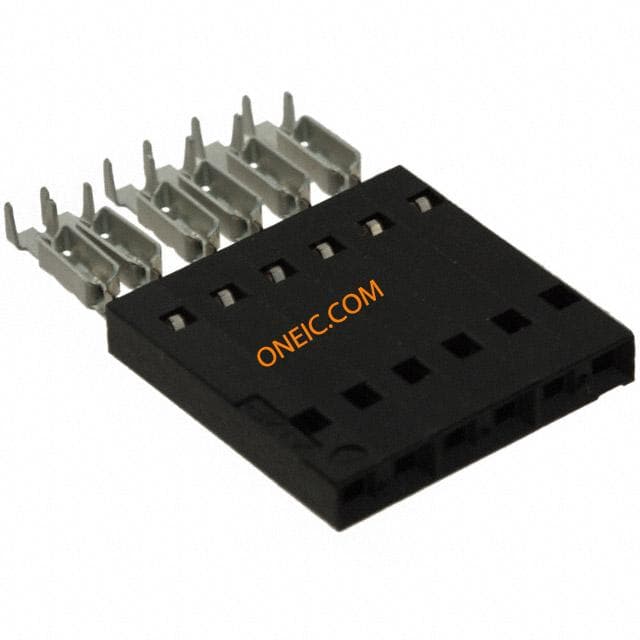

5-104439-5
