点击放大查看

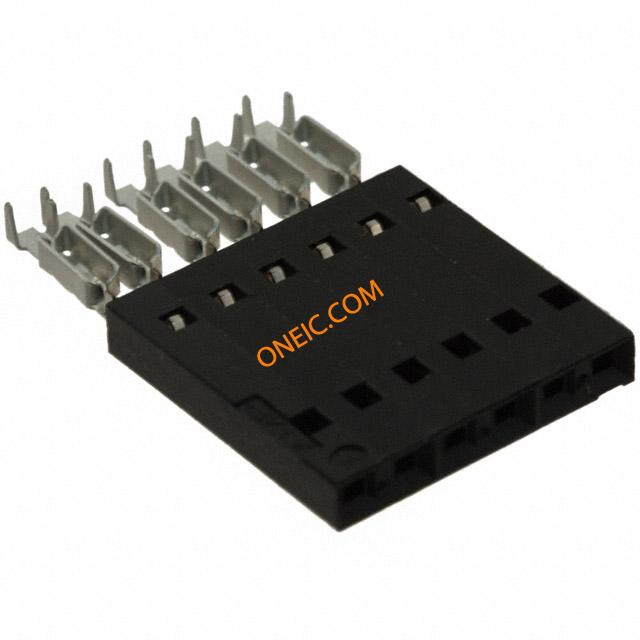

5-104439-5

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS 26-22AWG GOLD Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR PLAIN .100CL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

51044395

标准包装数量

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

供电电压	267 V	输入电阻	5000
连接器阻抗	刺破式压接 (IDC), 压接	最大额定电流	3
保护额定电压（VPR）	600 VAC

机械参数

颜色	Black	间距	2.54 mm
包装方式	Tube	导线类型	Ribbon Cable
壳体颜色	黑色	电缆类型	Ribbon Cable
导线线规	22-26 AWG	端接方式	IDT
触点形式	Female Socket	触头类型	Female Socket
第二连接器	Without	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	不带	排数	1
高度（英寸）	.098	插入件材料	磷青铜
操作力	High	壳体材料	热塑塑料
总长度	2.39	包装数量	36
面板安装类型	不带	电缆端接方式	IDC
端接样式	插座	触点数	6
绝缘直径	1.37 mm [ .054 in ]	位数	6
兼容外壳尺寸（如TM-700等）	公端	安装孔直径	不带
典型触点布局	同轴	接触镀层厚度	30µin (0.76µm)
静电放电屏蔽	不带

产品信息

备注	带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。	类型	IDC Connector
连接器性别	RCP	系列	AMPMODU MTE, AMP
产品特性	Closed End	主要用途	Closed End
产品子类型	连接器	输出配置	Free Hanging (In-Line)

环境参数

工作温度

-65 – 105
