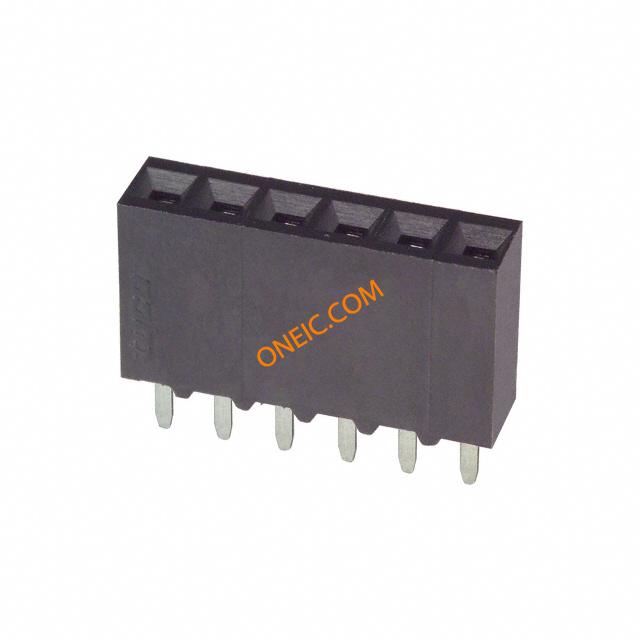

5-534237-4

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 6POS .100 VERT GOLD Headers & Wire Housings REC 1X06P VRT T/H Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleMod IINumber of Positions = 6Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONN, RECEPTACLE, 6WAY, 1ROW AMPMODU MOD II 6 Position Single Row 2.54 mm Pitch Vertical Receptacle TE Connectivity AMPMODU Mod II 系列 6路直 2.54mm节距通孔印刷电路板插座, 板对板 06 MODII VRT SR CE 100/115
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	37

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

额定电压

750 V

最大额定电流

2 A

机械参数

颜色	Black	间距	2.54 mm
重量	0	包装方式	Tube
端接方式	Solder	触头类型	Female Socket
尾部长度	:2.92mm	安装类型	Through Hole
连接器类型	Receptacle	接触镀层	Gold Over Nickel
排数	1	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	端接样式	Through Hole
触点数	6	接触件端接	:Through Hole Vertical
位数	6	接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	AMPMODU MOD II	产品子类型	Receptacles / Sockets - PCB
加载位置数	All

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

5-534237-4

在线文档

5-534237-4?RQPN=5-534237-4

相关型号

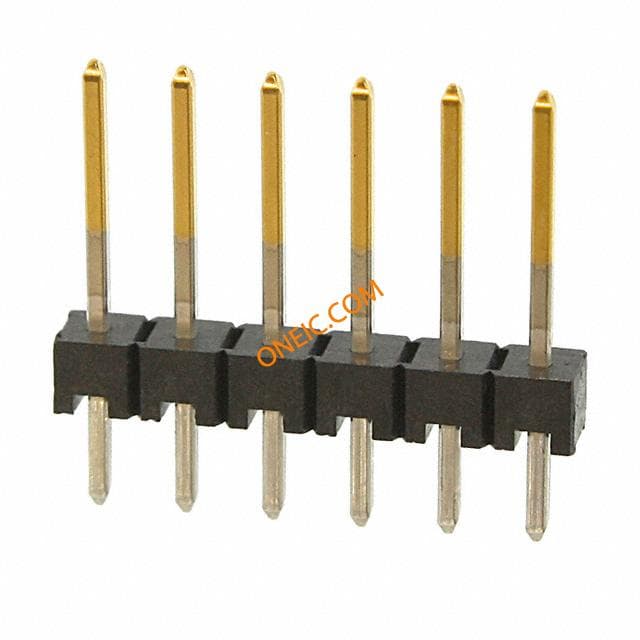

104346-4
