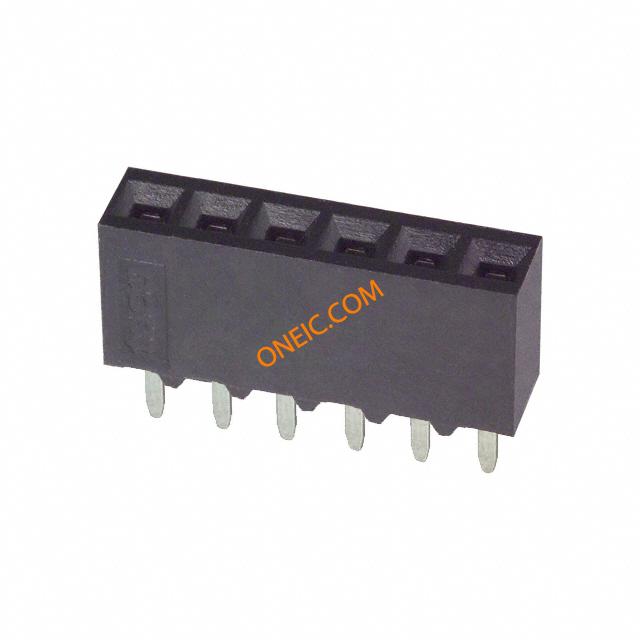

5-535541-4

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip RCP 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 6POS .100 VERT GOLD Conn Socket Strip RCP 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 6Number of Rows = SingleLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONN, RECEPTACLE, 6WAY, 1ROW 06 MODIV VRT SR CE 100/115
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Rail / Tube

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366910

电气参数

接触电阻

12 mohm

最大额定电流

2/Contact A

机械参数

颜色	Black	深度	3.56 mm
间距	2.54 mm	高度	6.73 mm
重量	0.002	包装方式	Tube
端接方式	Solder	触头类型	Female Socket
外壳颜色	Black	安装类型	Through Hole
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	Through Hole	排数	1
触头材料	Phosphor Bronze	总长度	15.24 mm
触点数	6	接触件端接	:Through Hole Vertical
位数	6	接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket Strip	连接器性别	RCP
系列	:AMPMODU Mod IV	加载位置数	All

环境参数

工作温度

-65C to 105C
