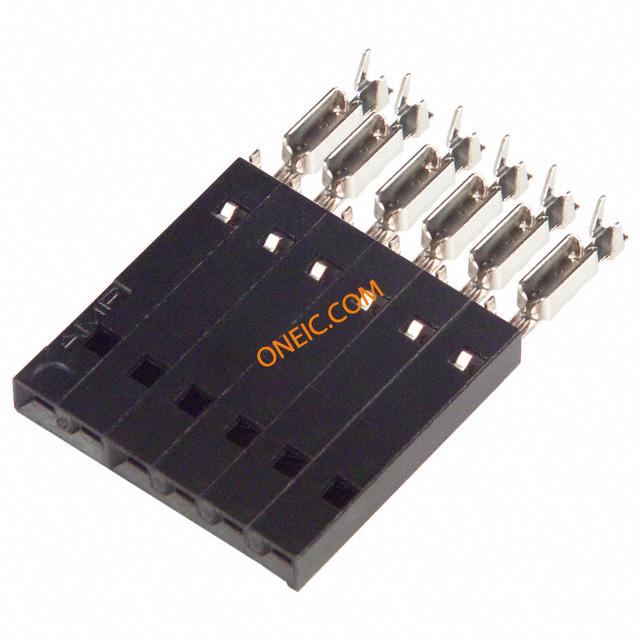

5-103974-5

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .100 TIN Headers & Wire Housings 4X6 RCPT SR PLAIN .100CL Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR PLAIN .100CL
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	其他名称	A34946
产品类别	Headers & Wire Housings	标准包装数量	756
工厂包装数量	36

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

供电电压	267 V	输入电阻	5000
连接器阻抗	刺破式压接 (IDC), 压接	最大额定电流	3 A
保护额定电压（VPR）	600 VAC

机械参数

颜色	Black	间距	2.54 mm
高度	2.49 mm [ .098 in ]	长度	60.71 mm [ 2.39 in ]
包装方式	Tube	导线类型	Ribbon Cable
壳体颜色	黑色	导线线规	22-26 AWG
排间距	2.54 mm	端接方式	IDT
触头类型	Female Socket	第二连接器	Without
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Tin Over Nickel	安装样式	Wire
排数	1	插入件材料	磷青铜
操作力	Standard	触头材料	Phosphor Bronze
壳体材料	Thermoplastic	包装数量	36
面板安装类型	不带	电缆端接方式	IDC
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	6	绝缘直径	1.37 mm [ .054 in ]
位数	6	兼容外壳尺寸（如TM-700等）	与接头配合
安装孔直径	不带	典型触点布局	同轴
接触镀层厚度	100µin (2.54µm)	静电放电屏蔽	带有

产品信息

备注	带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。	类型	IDC Connector
连接器性别	RCP	系列	AMPMODU MTE
产品特性	Closed End	产品子类型	Receptacle Assemblies

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

5-103974-5?RQPN=5-103974-5

相关型号

104346-4

te connectivity / amp

Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 6POS VERT PCB TIN Headers & Wire Housings 06 MODII HDR SRST B/A W/HD Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 6Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR SRST B/A W/HD

¥1.0728

详情

102523-4

te connectivity / amp

Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 6POS PCB TIN Headers & Wire Housings SHROUDED RA SINGLE 6 with standoffs .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 6Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR SRRA SHRD .100CL

¥11.9520

详情

146132-4

te connectivity / amp

Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER B/A 6POS SL PCB TIN Headers & Wire Housings 06 MODII HDR SR SFMNT B/A .100 06 MODII HDR SR SFMNT B/A .100 06 MODII HDR SR SFMNT B/A .100 Search Keywords:board to board, AMPMODU, pcb connectors,

¥2.0160

详情

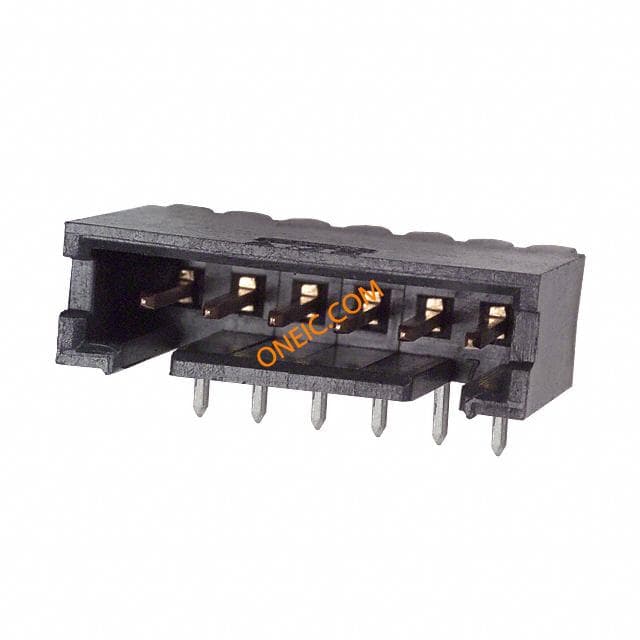

5-102203-3
