103672-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 4POS PCB TIN Headers & Wire Housings LATCHING HDR SHRD 4P with hold down Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 MTE HDR SRRA LATCH W/HLDWN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 1 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 开关功能 | Latched | 接触电阻 | 15 mΩ |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 600 V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 13.59 mm [ .535 in ] | 长度 | 12.7 mm [ .5 in ] |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Bright Tin-Lead Over Nickel | 触点时序 | Without |
| 安装样式 | 带有 | 排数 | 1 |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 安装特性 | 压具 |
| 包装数量 | 42 | 面板安装类型 | 直角 |
| 端接样式 | Through Hole | 第一连接器类型 | 带罩 |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 端接表面处理 | 带有 | 接触件尾部长度 | 2.54 µm [ 100 µin ] |
| 位数 | 4 | 兼容外壳尺寸（如TM-700等） | 母端护套组件 |
| 触头长度-柱 | 3.3 mm [ .13 in ] | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡铅 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 端子柱长度 | 5.84 mm [ .23 in ] | 接触镀层厚度 | 100µin (2.54µm) |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU MTE |
| 产品特性 | Board Lock | 架构类型 | 否 |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | 封装热阻 | 1.57 mm [ .062 in ] |
相关型号

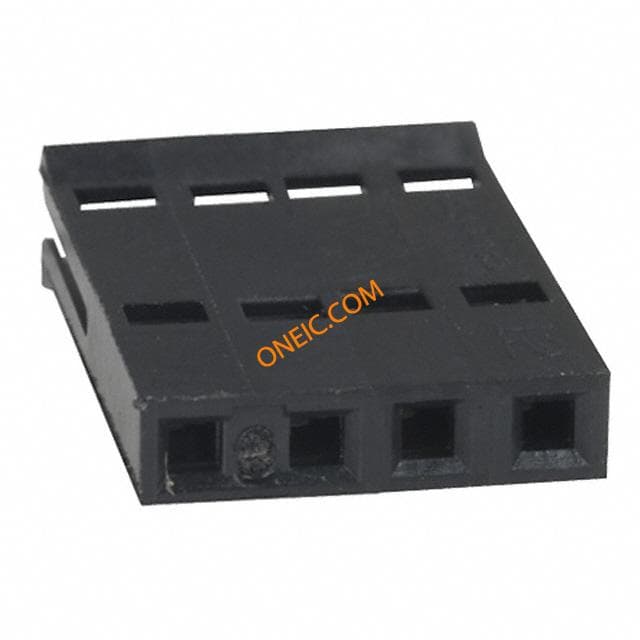

104257-3
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 4POS .1" POL UNLOAD 4 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 4P Conn Housing RCP 4 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 4WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Connector: wire-board; AMPMODU MTE; plug; female; w/o terminals TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 4 路 直 母 PCB 壳体 04 MTE RCPT HSG SR LATCH .100

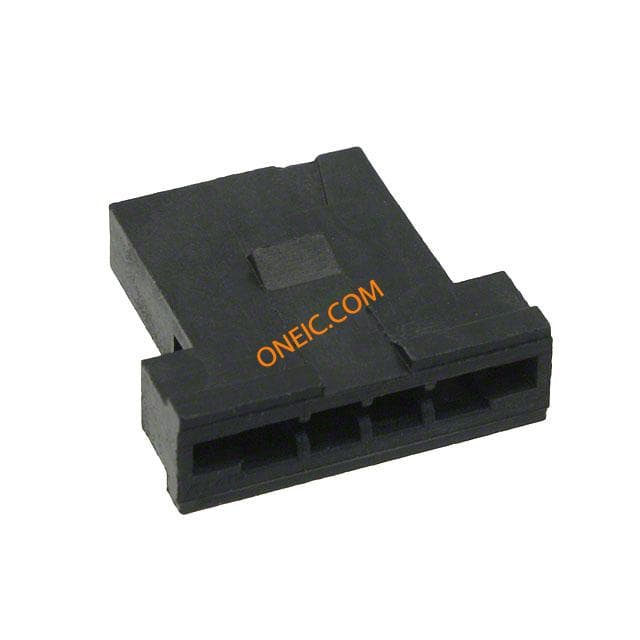

1-88859-0
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 004 HOUSING FFC RCPT SR 100CL TE Connectivity 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Crimp Termination, 2A FFC & FPC Connectors 004 HOUSING FFC RCPT Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 4Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 4POS, 1ROW Connector4wayreceptacleFFC TE Connectivity 2.54mm节距 4路 (1排) 直 外壳, 压接端接, 2A
103957-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 4POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 4P Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,5X4MTERCPTSRLATCH.100CL 5X4 MTE RCPT SR LATCH .100CL

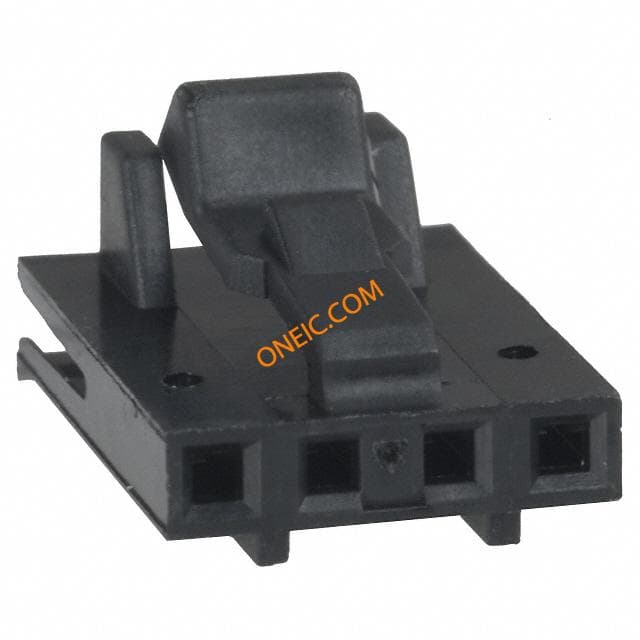

487526-3
