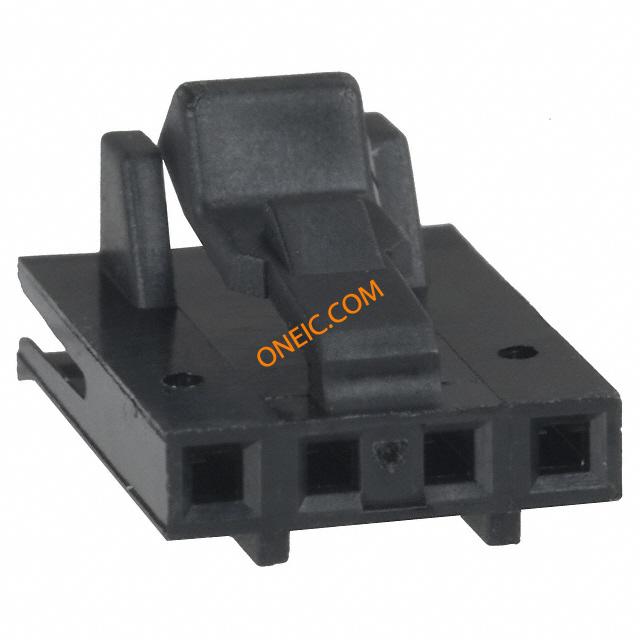

487526-3

点击放大查看

487526-3

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 4POS.100 SLIM W/LATCH FFC & FPC Connectors 004 HOUSING FFC RCPT Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 4Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 4POS, 1ROW CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,4POS,2.54MM,SLIMLINE,SINGLER 004 HOUSING FFC RCPT 100CL SR
分类
开关
对参数有疑问？问 AI 助手

商业参数

其他名称4875263产品类别FFC & FPC Connectors
标准包装数量Bulk工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级Yes

电气参数

额定电压300V最大额定电流2A
最小供电电压300VAC

机械参数

颜色Black深度13.72 mm
间距2.54 mm重量0.002
包装方式Bulk第二连接器With
基体材料:Thermoplastic安装类型Straight
连接器类型Slimline接触镀层:-
安装样式Cable排数1
连接器用途Receptacle锁定特性Latch
总宽度:0.394"触头材料:-
壳体材料Thermoplastic总长度2.54 [0.100]
安装特性Without面板安装类型Without
主要材料FFCFFC/FCB厚度0.05-0.13mm
配接方向Without触点数4
接触件端接:-位数4

产品信息

类型Housing连接器性别RCP
系列:-产品特性Latch Lock
制造商全称AMP/Slimline产品子类型Housing
连接类型FFC Cable

环境参数

工作温度-65°C ~ 105°C
