1-88859-0

点击放大查看

1-88859-0

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 004 HOUSING FFC RCPT SR 100CL TE Connectivity 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Crimp Termination, 2A FFC & FPC Connectors 004 HOUSING FFC RCPT Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 4Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 4POS, 1ROW Connector4wayreceptacleFFC TE Connectivity 2.54mm节距 4路 (1排) 直 外壳, 压接端接, 2A
分类
开关
对参数有疑问？问 AI 助手

商业参数

其他名称1888590产品类别FFC & FPC Connectors
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级Yes

电气参数

额定电压300V最大额定电流2A
最小供电电压300VAC

机械参数

颜色Black深度13.71 mm
间距2.54 mm高度4.72 mm
重量0.002包装方式Bulk
端接方式Crimp第二连接器With
外壳颜色Black安装类型Straight
连接器类型Standard接触镀层:-
安装样式Cable排数1
连接器用途Receptacle锁定特性Detent
总宽度:0.420"触头材料Phosphor Bronze
壳体材料Thermoplastic总长度14.98 mm
安装特性Without面板安装类型Without
FFC/FCB厚度0.05-0.13mm配接方向With
触点数4接触件端接:-
位数4中心触点材料2.54 [0.100]

产品信息

备注Use Extraction Tool No. 91092-1 for round wire contacts.类型Housing
连接器性别RCP系列:-
产品特性Detent Lock产品子类型Housing
连接类型FFC Cable

环境参数

工作温度-65°C ~ 105°C

文档与媒体

在线文档
1-88859-0?RQPN=1-88859-0
在线文档
TE.Connect?C=1&M=BYPN&TCPN=1-88859-0&RQPN=1-88859-0

相关型号

1375549-3

1375549-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 4POS IDC STR SMD TIN Headers & Wire Housings 04 MTE VERT SMT HDR FULL SN-PB .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorConnector Type = Header - Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mm4 PositionsSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 MTE VERT SMT HDR FULL SN-PB

¥16.2493
详情
103670-3

103670-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 4POS 15AU AMPMODU MTE IDC Header vertical 4P Headers & Wire Housings LTCHNG HDR W/SWAGE 4 Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 4POS, 2.54MM AMPMODUMTEVERTASSY,04MTEHDRSRSTLATCHW/HLDWN 04 MTE HDR SRST LATCH W/HLDWN

¥2.5500
详情

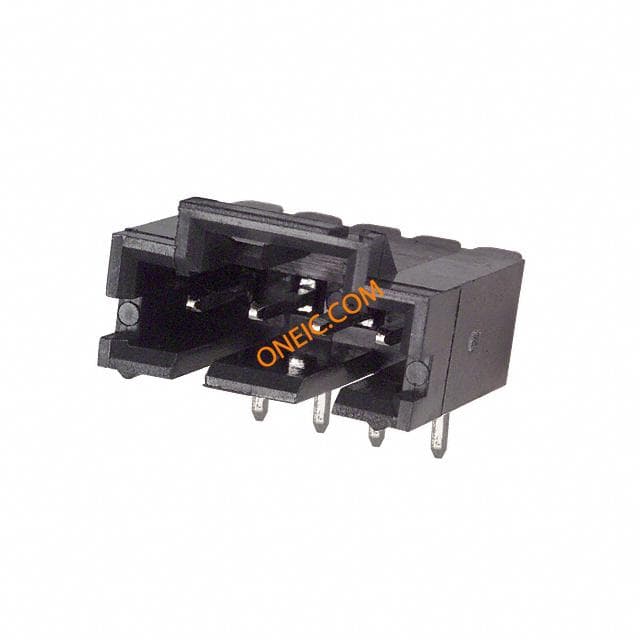

5-103634-3

5-103634-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 4POS PCB TIN Header 4 way pin 2.54mm IDC AmpModu Headers & Wire Housings LATCHING HDR SHRD 4P w/o hold down Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 4POS, 2.54MM AMPMODUMTER/AHDAY,04MTEHDRSRRALATCH.100CLLF TE Connectivity AMPMODU MTE 系列 2.54mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 04 MTE HDR SRRA LATCH.100CL LF

¥2.7200
详情
103669-3

103669-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 4POS PCB TIN Headers & Wire Housings LTCHNG HDR W/SWAGE 4 Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 MTE HDR SRST LATCH W/HLDWN

¥3.3524
详情
103673-3

103673-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Headers & Wire Housings LATCHING HDR SHRD 4P with hold down .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 4POS 15AU Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODUMTER/AA/WHD,04MTEHDRSRRALATCHW/HLDWN 04 MTE HDR SRRA LATCH W/HLDWN

¥2.6860
详情
103908-3

103908-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 4POS 30AU Headers & Wire Housings LTCHNG HDR W/SWAGE 4 Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODUMTEVERTASSY,04MTEHDRSRSTLATCHW/HLDWN 04 MTE HDR SRST LATCH W/HLDWN

¥2.6724
详情
1-104450-0

1-104450-0

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 4POS VERT .100 TIN Headers & Wire Housings HDR 4P VERT .100 TIN .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 MTE HDR SRST LATCH W/HLDWN

¥5.2768
详情
104363-3

104363-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 4POS VERT LATCH 15AU Headers & Wire Housings 04 MTE HDR SRST LATC 3024 Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 MTE HDR SRST LATCH .100CL

¥4.7566
详情
104361-3

104361-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG .100 4POS 15AU Headers & Wire Housings HDR HI TEMP 4 POS with swage Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 MTE HDR SRRA LATCH W/HLDWN

¥3.4068
详情
103639-3

103639-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 4POS PCB TIN Headers & Wire Housings LTCH HDR W/O SWAGE 4 Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 MTE HDR SRST LATCH .100CL

¥2.3956
详情
103906-3

103906-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 4POS 30AU Headers & Wire Housings LATCHING HDR SHRD 4P w/o hold down Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR, HEADER, R/A, 2.54MM, 4WAY AMPMODUMTER/AHDAY,04MTEHDRSRRALATCH.100CL 04 MTE HDR SRRA LATCH .100CL

¥3.0872
详情

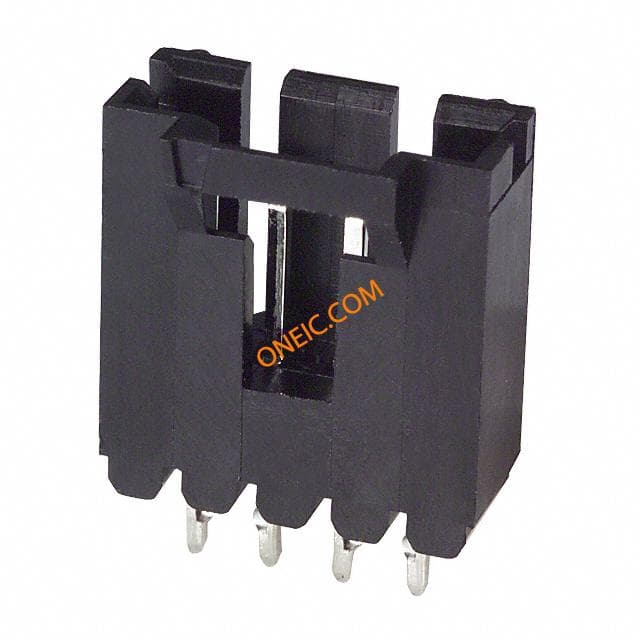

5-103669-3

5-103669-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 4POS PCB TIN TE Connectivity MTE Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCHNG HDR W/SWAGE 4 Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 4POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 04 MTE HDR SRST LATCH W/HLDWN

¥2.6248
详情

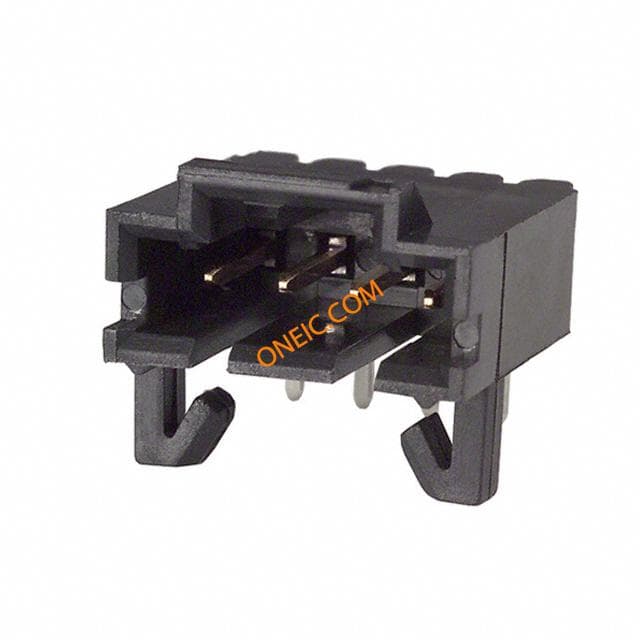

5-103673-3

5-103673-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 4POS 15AU Header 4 way pin 2.54mm IDC AmpModu Headers & Wire Housings LATCHING HDR SHRD 4P with hold down Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4 MTE HDR SRRA LATCH W/HLDWN

¥2.5364
详情
5-103908-3

5-103908-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Headers & Wire Housings LTCHNG HDR W/SWAGE 4 .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 4POS 30AU TE Connectivity MTE Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 4POS, 2.54MM Header;Shrouded;Vertical;Brass;Thermoplastic;4;0.1in.;Gold;0.025in. TE Connectivity AMPMODU MTE 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 04 MTE HDR SRST LATCH W/HLDWN

¥3.1620
详情

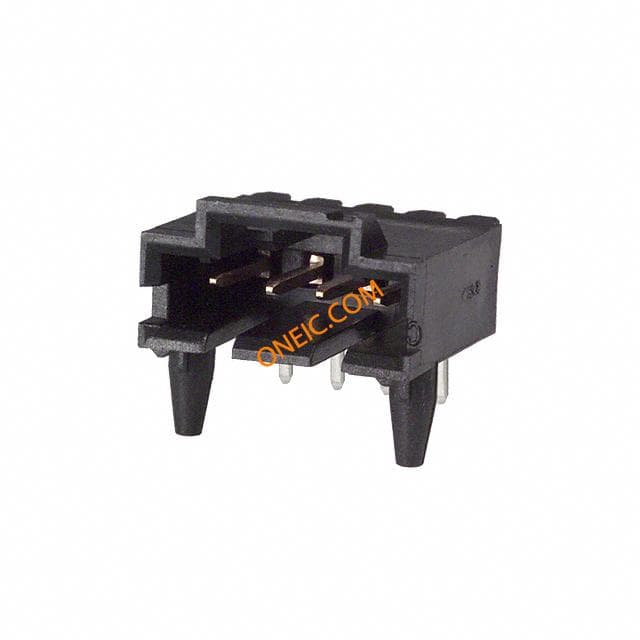

5-104361-3

5-104361-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG .100 4POS 15AU Headers & Wire Housings HDR HI TEMP 4 POS with swage Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 MTE HDR SRRA LATCH W/HLDWN

¥2.5432
详情
103672-3

103672-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 4POS PCB TIN Headers & Wire Housings LATCHING HDR SHRD 4P with hold down Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 MTE HDR SRRA LATCH W/HLDWN

¥2.0400
详情
103634-3

103634-3

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 4POS PCB TIN Headers & Wire Housings LATCHING HDR SHRD 4P w/o hold down Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 MTE HDR SRRA LATCH .100CL

¥3.3388
详情

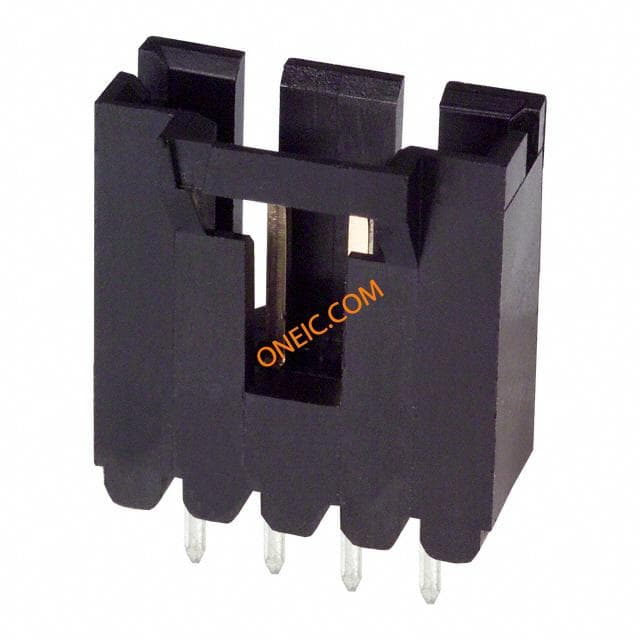

5-104363-3
