点击放大查看

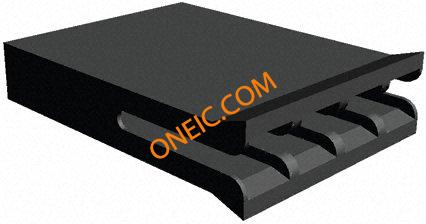

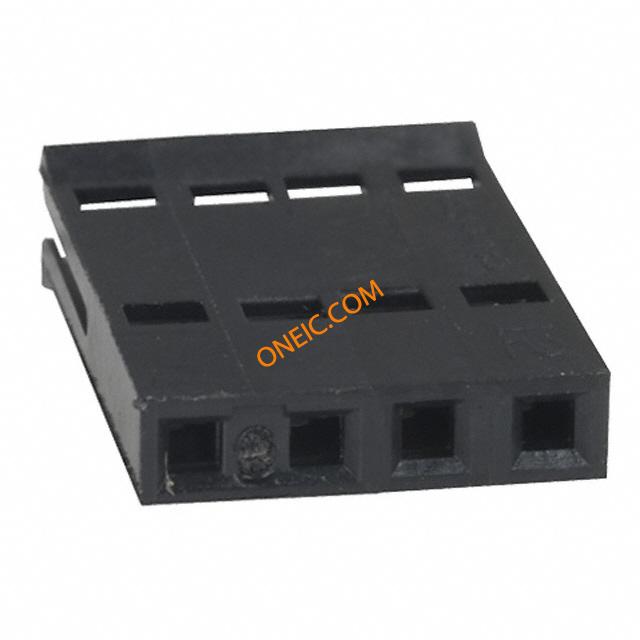

487378-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 4POS .100 SLIMLINE FFC .100,housing,rcp,2.54mm,4way FFC & FPC Connectors REC 1X04P 100X100 HSG Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 4Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC.100,housing,rcp,2.54mm,4way TE Connectivity 2.54mm 节距 4 路直母 PCB 壳体 004 HOUSING FFC RCPT 100CL SR
分类	开关

对参数有疑问？问 AI 助手

商业参数

其他名称	4873783	产品类别	FFC & FPC Connectors
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	Yes

电气参数

额定电压	300V	供电电压	300 VACrms
输入电阻	5000	钳位电压	720
最大额定电流	2A	最小供电电压	300VAC

机械参数

颜色	Black	深度	13.72mm
间距	2.54 mm	宽度	3.66mm
高度	3.66 mm	长度	10mm
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	电缆类型	FFC
方向	直	第二连接器	Without
外壳颜色	Black	安装类型	Straight
连接器类型	Slimline	安装样式	Cable
排数	1	连接器用途	Receptacle
壳体材料	Thermoplastic	总长度	2.54 [0.100]
安装特性	Without	包装数量	1
面板安装类型	Without	主要材料	Connector
端接样式	插座	FFC/FCB厚度	0.05-0.13mm
配接方向	Without	触点数	4
位数	4	安装孔直径	不带

产品信息

类型	Housing	连接器性别	RCP
系列	487378	制造商全称	487378Series
产品子类型	Housing	连接类型	FFC Cable
适用产品/相关产品	Centerline Flexible Film Connector

环境参数

工作温度

-65°C ~ 105°C

文档与媒体

在线文档

487378-3?RQPN=487378-3

相关型号

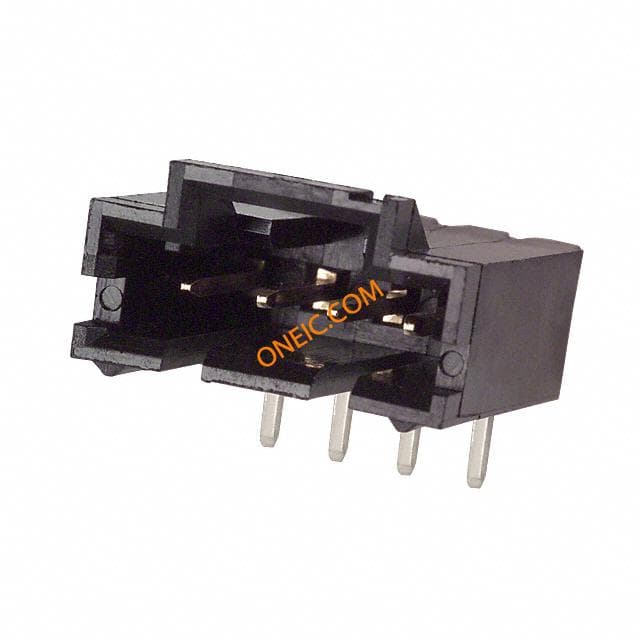

5-103635-3
