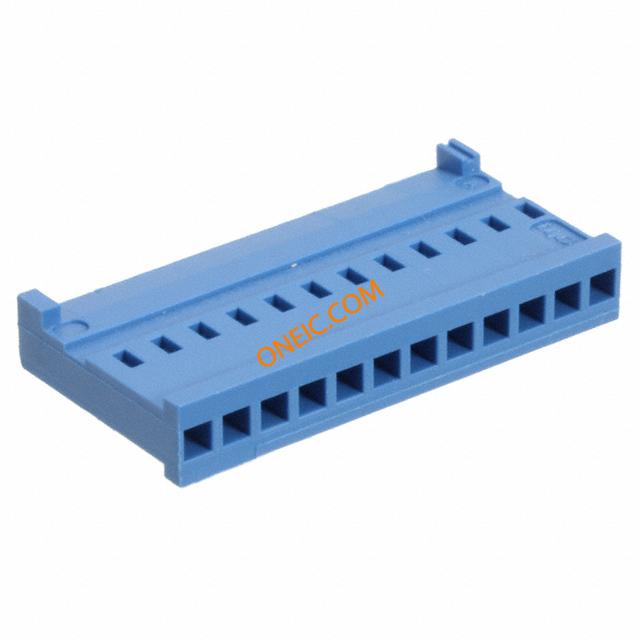

1-281838-2
| 制造商 | |
| 描述 | Conn Housing RCP 12 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 12POS .100 CRIMP 12way single row HE14 crimp socket shell Headers & Wire Housings RECPT 1X12P CRIMP HE14 Conn Housing RCP 12 POS 2.54mm Crimp ST Loose Piece Product Highlights:HousingNot PreloadedNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 12WAY Connector: wire-board; HE14; plug; female; for cable; PIN:12 TE Connectivity AMPMODU HE13/HE14 系列 2.54mm 节距 12 路 直 母 电缆安装 PCB 连接器外壳 HOUSING HE13 HE14 COSI 12 P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU HE13 / HE14 Series | 最大额定电流 | :3A |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Blue | 深度 | 15mm |
| 间距 | 2.54 mm | 宽度 | 5.08mm |
| 长度 | 30.48mm | 重量 | 0.0163 |
| 包装方式 | Bulk | 排间距 | 2.54 mm |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 柱间距 | 2.54 [.100] | 第二连接器 | Without |
| 外壳颜色 | Blue | 安装类型 | Straight |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 接触镀层 | :- |
| 安装样式 | Panel | 排数 | 1 |
| 封装形式 | Receptacle | 触头材料 | :- |
| 壳体材料 | PBT - GF | 包装数量 | Loose Piece |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 第一连接器安装类型 | :Cable |
| 第一连接器安装特征 | 1x12 | ||
产品信息
| SPG | 10 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | HE13 / HE14 | 预加载 | No |
| CAD图纸 | 3D CAD Model | 编码、键控 | No |
| 产品子类型 | Housing | 适配器系列 | HE14 |
| 单元数量 | 1 | ||
