188744-1
| 制造商 | |

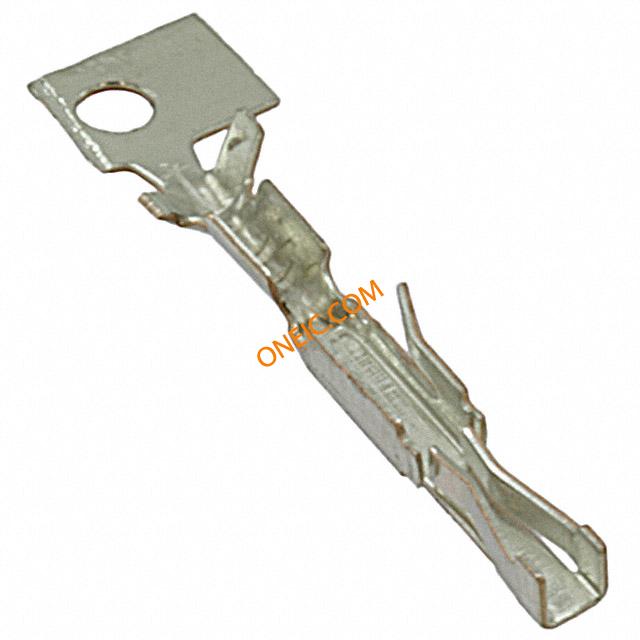

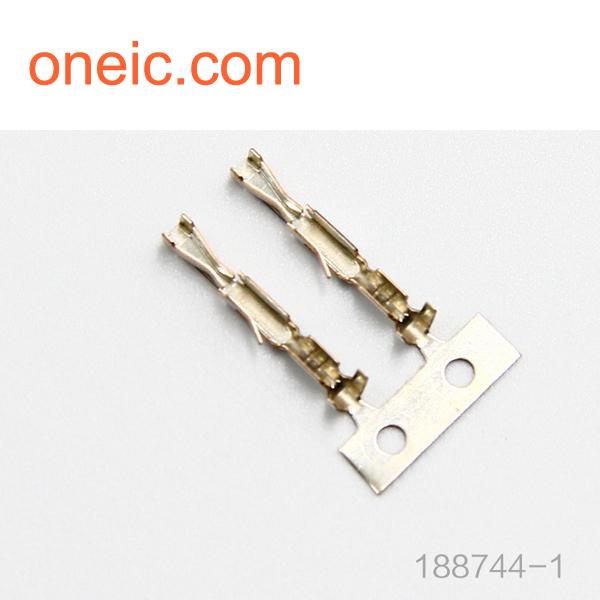

| 描述 | Contact SKT Crimp ST Cable Mount Strip CONN RCPT CONTACT HE13/HE14 TIN Crimp Contact 24-28 awg tin HE14 Headers & Wire Housings CRIMP SOCKET TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = .80 - 1.50 mmWire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 28-24AWG CONTACT, CRIMP, SOCKET, 28-24AWG, REEL CrimpContact24-28awgtinHE14 TE Connectivity AMPMODU HE14 系列 母 压接接线端子, 压接, 镀锡镀镍触点 CONTACT REC HE14 COSI TIN PLATED |
| 分类 |
商业参数
| 其他名称 | A107025CT | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 20000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 接触电阻 | 15mΩ | 最大额定电流 | :3A |
机械参数
| 重量 | 0.007 | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 24-28 AWG | 端接方式 | Crimp |
| 重量（g） | 12 | 触点尺寸 | :24 |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Tin Over Nickel |
| 触头材料 | Phosphor Bronze | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 接触镀层厚度 | 100µin (2.54µm) | 线规或范围 - AWG | :28AWG |
| 线规或范围 - mm² | :0.22mm² | 外径-未扩张 | :1.5mm |
产品信息
| 名称 | 端子 | 单位 | PCS |
| 连接器性别 | SKT | 系列 | HE13 / HE14 |
| 数量 | 80000.0 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Contacts | 制造国家 | 波兰 |
| 设备部件号 | 188744-1.pdf | 最小起订量 | 1 |
| 适用产品/相关产品 | :0.1 AMPMODU Headers, Housings | ||
环境参数
| 工作温度 | +105°C | 可用温度范围 | -65to+105°C |
| 结工作温度 | 105°C | ||
文档与媒体
相关型号
281839-6
te connectivity / amp

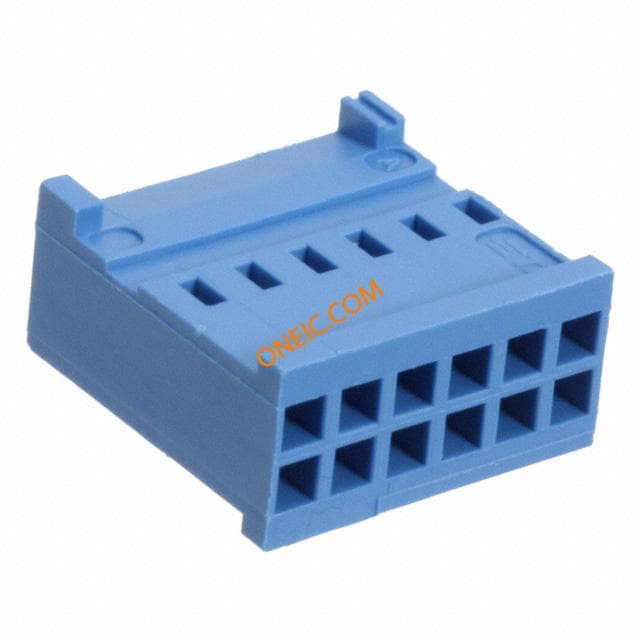

Conn Housing RCP 12 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 2X6POS IDC .100 12way double row HE14 crimp socket shell Headers & Wire Housings RECPT 2X06 POS Conn Housing RCP 12 POS 2.54mm Crimp ST Loose Piece Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 12WAY 12waydoublerowHE14crimpsocketshell Cable socket housing Pitch2.54 mm Poles 2 x 6 HE-14, 281839-6, TE Connectivity TE Connectivity AMPMODU HE13/HE14 系列 2 行 2.54mm 节距 6 路 直 母 电缆安装 PCB 连接器外壳 HOUSING HE13 HE14 COSI 2X6 P
1-281838-2
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 12POS .100 CRIMP 12way single row HE14 crimp socket shell Headers & Wire Housings RECPT 1X12P CRIMP HE14 Conn Housing RCP 12 POS 2.54mm Crimp ST Loose Piece Product Highlights:HousingNot PreloadedNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 12WAY Connector: wire-board; HE14; plug; female; for cable; PIN:12 TE Connectivity AMPMODU HE13/HE14 系列 2.54mm 节距 12 路 直 母 电缆安装 PCB 连接器外壳 HOUSING HE13 HE14 COSI 12 P
281839-3
te connectivity / amp

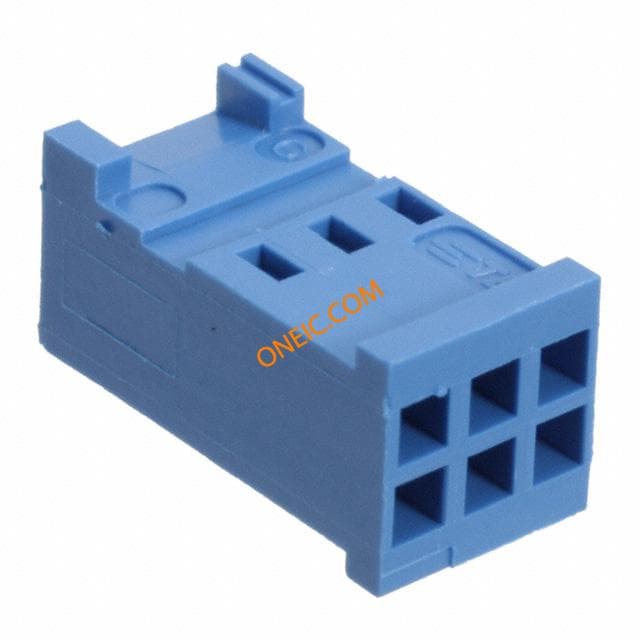

Conn Housing RCP 6 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 3X2POS IDC .100 6 way double row HE14 crimp socket shell Headers & Wire Housings RECPT 2X03 POS Conn Housing RCP 6 POS 2.54mm Crimp ST Loose Piece Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 6WAY 6waydoublerowHE14crimpsocketshell Plug; wire-board; female; PIN:6; w/o terminals; 2.54mm; for cable Cable socket housing Pitch2.54 mm Poles 2 x 3 HE-14, 281839-3, TE Connectivity TE Connectivity AMPMODU HE13/HE14 系列 2 行 2.54mm 节距 3 路 直 母 电缆安装 PCB 连接器外壳 HOUSING HE13 HE14 COSI 2X3 P
