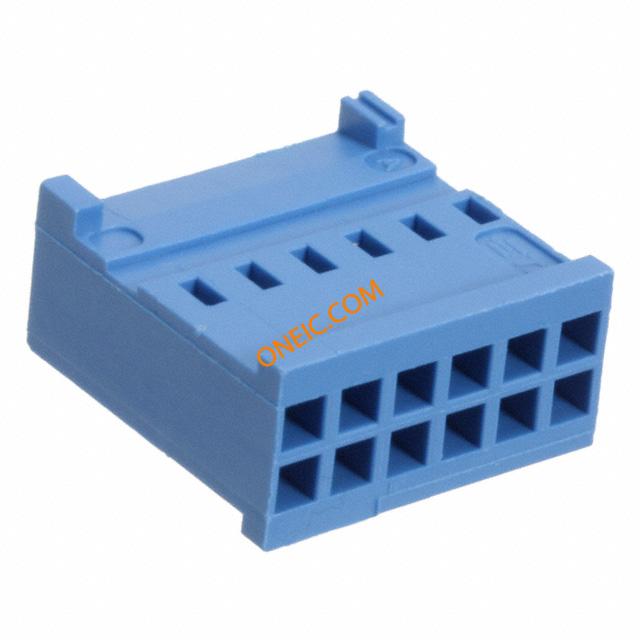

281839-6
| 制造商 | |
| 描述 | Conn Housing RCP 12 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 2X6POS IDC .100 12way double row HE14 crimp socket shell Headers & Wire Housings RECPT 2X06 POS Conn Housing RCP 12 POS 2.54mm Crimp ST Loose Piece Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 12WAY 12waydoublerowHE14crimpsocketshell Cable socket housing Pitch2.54 mm Poles 2 x 6 HE-14, 281839-6, TE Connectivity TE Connectivity AMPMODU HE13/HE14 系列 2 行 2.54mm 节距 6 路 直 母 电缆安装 PCB 连接器外壳 HOUSING HE13 HE14 COSI 2X6 P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU HE13 / HE14 Series | 最大额定电流 | :3A |
机械参数
| 颜色 | Blue | 深度 | 15mm |
| 间距 | 2.54 mm | 宽度 | 7.62mm |
| 高度 | 7.62 mm | 长度 | 15.24mm |
| 重量 | 0.0131 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 柱间距 | 2.54 [.100] |
| 第二连接器 | Without | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 接触镀层 | :- | 排数 | 2 |
| 封装形式 | Receptacle | 触头材料 | :- |
| 壳体材料 | PBT - GF | 总长度 | 15.24 mm |
| 包装数量 | Loose Piece | 主要材料 | Connector |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 6 |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | HE13 / HE14 |
| 预加载 | No | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 制造商全称 | HE14Series |
| 产品子类型 | Housing | 适用产品/相关产品 | Modular Headers and Plug to IEC 60603-8 Series |
