点击放大查看

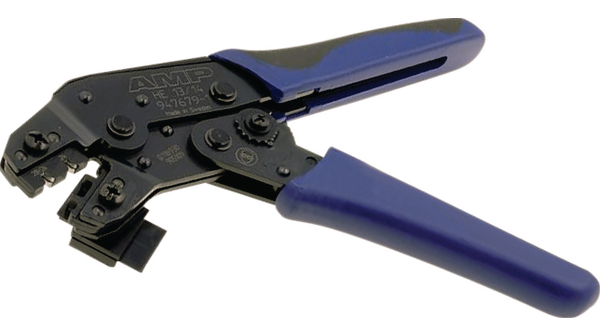

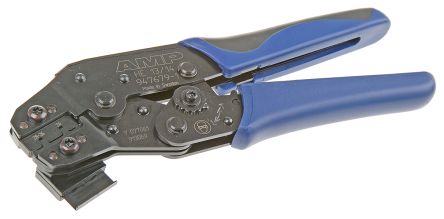

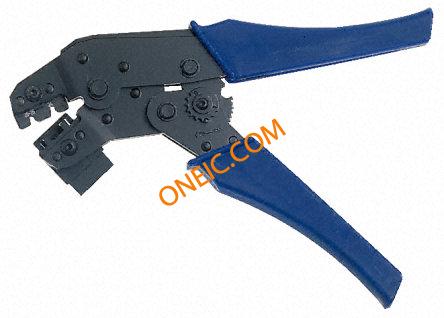

947679-1
| 制造商 | |
| 描述 | General Hand Tool Used In The Aircraft And Military Industries Hand Tools HE-14 P G HANDTOOL TOOL HAND CRIMPER HE-14 AMP HE14 crimp tool TOOL, HAND, CRIMP, HE14 AMPHE14crimptool Tool: for crimping; terminals; 28÷24AWG; Series: HE14; 195mm Crimping tool, 947679-1, TE Connectivity TE Connectivity HE13/14 Crimp-on & Snap-in Contacts 压接工具 , 适用于28 → 24 AWG 线规格 HE-14 P.G.HANDTOOL |
| 分类 |
商业参数
| 产品 | Hand Tools | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 82032000 |
机械参数
| 长度 | :195mm | 重量 | 0.38 |
| 导线线规 | 28...24AWG | 连接器类型 | Terminal |
| 驱动力 | RatchetAction | 总长度 | 195mm |
| 包装数量 | 1 | 线规或范围 - AWG | 24 AWG |
| 线规或范围 - mm² | 28AWG | ||
产品信息
| SPG | 1 | 类型 | Hand Tool |
| 系列 | :HE14 | 产品特性 | Side Entry, Ratchet |
| 功能 | Hand tool, HE-14 P.G. | 工具类型 | Hand Crimper |
| 适配器系列 | HE14 | 单元数量 | 1 |
| 工具类型/特性 | terminals | 应用细节 | 2.54mm |
| 适用产品/相关产品 | Rectangular Contacts, 24-28 AWG | ||
文档与媒体
相关型号
182734-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN CONTACT 24-28AWG TIN CRIMP HE14 crimp terminal Headers & Wire Housings CRIMP SOCKET TIN HE14 182734-2 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Terminate To WireWire Insulation Diameter = .80 - 1.50 mmWire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP SOCKET,HE14,PK200 HE14crimpterminal Contact; female; 0.08÷0.24mm2; 24÷28AWG; HE14; tinned; crimped Crimp socket Female, 182734-2, TE Connectivity TE Connectivity AMPMODU HE14 系列 母 压接接线端子, 压接, 镀锡触点 CONTACT REC HE14 COSI LOOSE P
525421-5
te connectivity / amp
Connector/Terminal-To-Tool Reference Hand Tools PROTOTYPING TOOL M/F 7 AMP HE14 IDT prototyping tool Tee Handled Insertion Tool PROOTYPE TOOL, HE14 AMPHE14IDTprototypingtool TE Connectivity HE14 系列 端接工具端接工具
