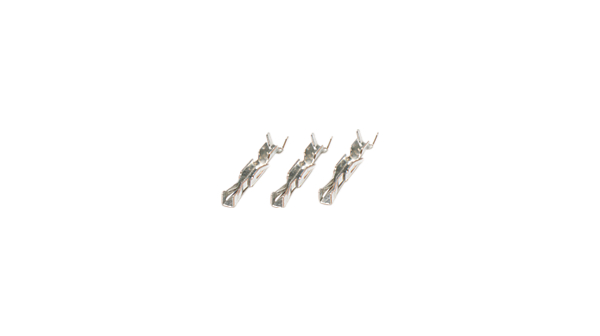

182734-2
| 制造商 | |

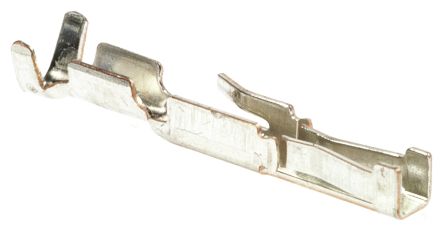

| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN CONTACT 24-28AWG TIN CRIMP HE14 crimp terminal Headers & Wire Housings CRIMP SOCKET TIN HE14 182734-2 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Terminate To WireWire Insulation Diameter = .80 - 1.50 mmWire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP SOCKET,HE14,PK200 HE14crimpterminal Contact; female; 0.08÷0.24mm2; 24÷28AWG; HE14; tinned; crimped Crimp socket Female, 182734-2, TE Connectivity TE Connectivity AMPMODU HE14 系列 母 压接接线端子, 压接, 镀锡触点 CONTACT REC HE14 COSI LOOSE P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 接触电阻 | 20mΩ | 最大额定电流 | :3A |
机械参数
| 重量 | 0.01903 | 包装方式 | Bulk |
| 导线线规 | 24-28 AWG | 端接方式 | Crimp |
| 触点尺寸 | :24 | 触头类型 | Signal |
| 柱间距 | 2.54mm | 安装类型 | crimped |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 安装样式 | for cable |
| 触头材料 | Phosphor Bronze | 包装数量 | Loose Piece |
| 连接器 - 电缆 | contact | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 绝缘直径 | 0.80 â 1.50 [0.032 â 0.059] | 接触镀层厚度 | 100µin (2.54µm) |
| 线规或范围 - AWG | :28AWG | 线规或范围 - mm² | 0.08-0.24² [28-24] |
| 触点材料 - 镀层 | tinned | 外径-未扩张 | :1.5mm |
产品信息
| SPG | 200 | 连接器性别 | SKT |
| 系列 | HE13 / HE14 | 产品子类型 | Contact |
| 适配器系列 | HE14 | 连接类型 | Wire |
| 单元数量 | 1 | 适用产品/相关产品 | :0.1 AMPMODU Headers, Housings |
环境参数
| 工作温度 | +125°C | 可用温度范围 | -55to+125°C |
| 结工作温度 | 125°C | ||
文档与媒体
相关型号
281839-8
te connectivity / amp

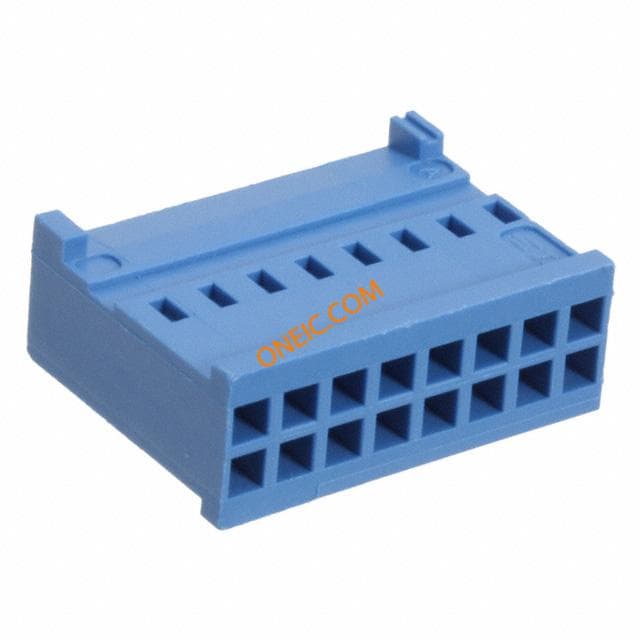

Conn Housing RCP 16 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN HOUSING RCPT DUAL 16POS 16way double row HE14 crimp socket shell Headers & Wire Housings RECPT 2X08 POS Conn Housing RCP 16 POS 2.54mm Crimp ST Loose Piece Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 16WAY Connector: wire-board; HE14; plug; female; for cable; PIN:16 Cable socket housing Pitch2.54 mm Poles 2 x 8 HE-14, 281839-8, TE Connectivity TE Connectivity AMPMODU HE13/HE14 系列 2 行 2.54mm 节距 8 路 直 母 电缆安装 PCB 连接器外壳 HOUSING HE13 HE14 COSI 2X8 P
281839-4
te connectivity / amp

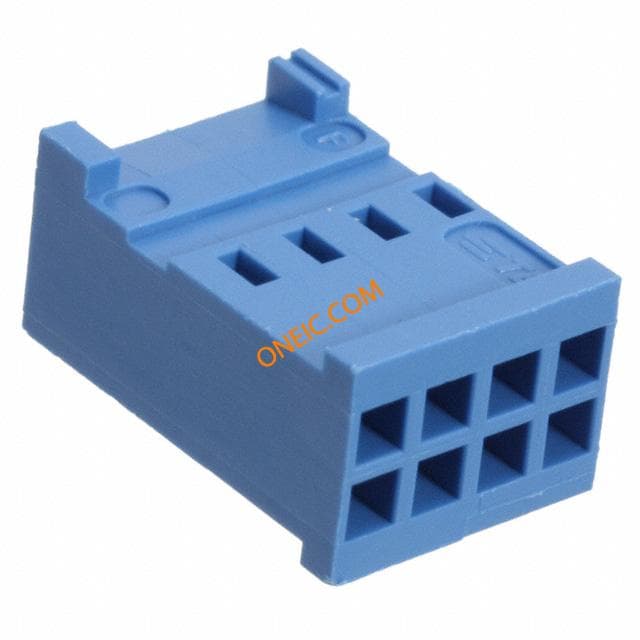

Conn Housing RCP 8 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN HOUSING RCPT DUAL 8POS 8 way double row HE14 crimp socket shell Headers & Wire Housings RECPT 2X04 POS Conn Housing RCP 8 POS 2.54mm Crimp ST Loose Piece Product Highlights:HousingNot PreloadedNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 8WAY 8waydoublerowHE14crimpsocketshell Plug; wire-board; female; PIN:8; w/o terminals; 2.54mm; for cable Cable socket housing Pitch2.54 mm Poles 2 x 4 HE-14, 281839-4, TE Connectivity TE Connectivity AMPMODU HE13/HE14 系列 2 行 2.54mm 节距 8 路 直 母 电缆安装 PCB 连接器外壳 HOUSING HE13 HE14 COSI 2X4 P
281839-5
te connectivity / amp

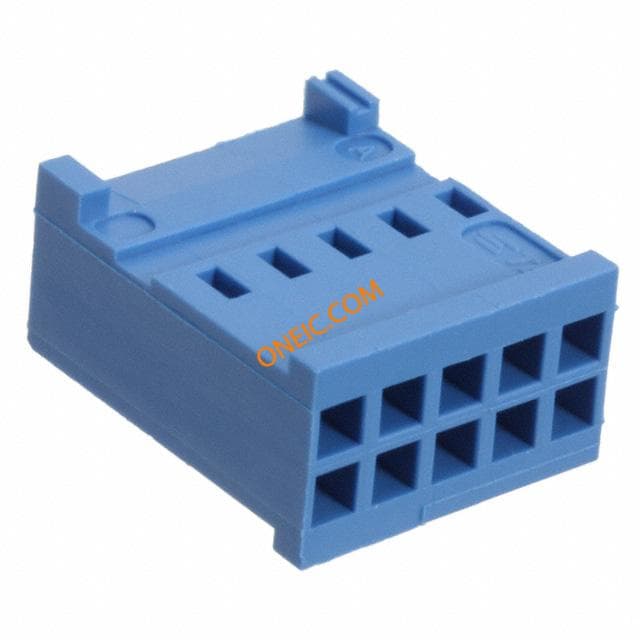

Conn Housing RCP 10 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN HOUSING RCPT DUAL 10POS 10way double row HE14 crimp socket shell Headers & Wire Housings RECPT 2X05 POS Conn Housing RCP 10 POS 2.54mm Crimp ST Loose Piece Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, CRIMP, RECEPTACLE, 2.54MM, 10P 10waydoublerowHE14crimpsocketshell Plug; wire-board; female; PIN:10; w/o terminals; 2.54mm; for cable Cable socket housing Pitch2.54 mm Poles 2 x 5 HE-14, 281839-5, TE Connectivity TE Connectivity AMPMODU HE13/HE14 系列 2 行 2.54mm 节距 5 路 直 母 电缆安装 PCB 连接器外壳 HOUSING HE13 HE14 COSI 2X5 P
188744-1
te connectivity / amp

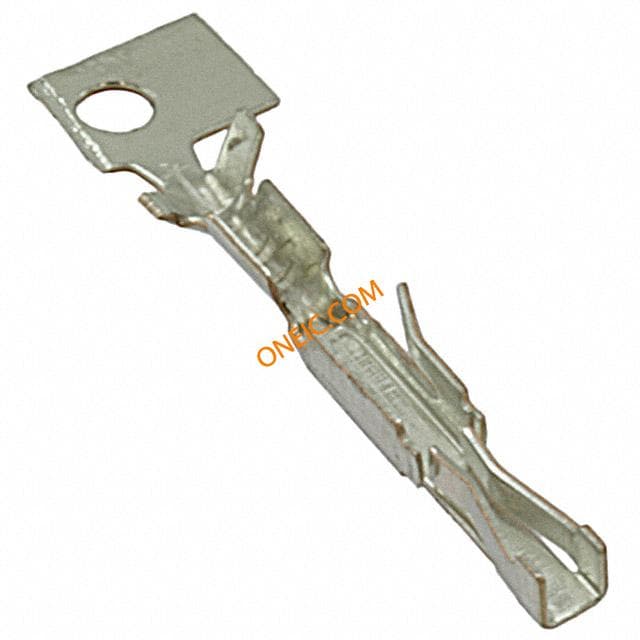

Contact SKT Crimp ST Cable Mount Strip CONN RCPT CONTACT HE13/HE14 TIN Crimp Contact 24-28 awg tin HE14 Headers & Wire Housings CRIMP SOCKET TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = .80 - 1.50 mmWire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 28-24AWG CONTACT, CRIMP, SOCKET, 28-24AWG, REEL CrimpContact24-28awgtinHE14 TE Connectivity AMPMODU HE14 系列 母 压接接线端子, 压接, 镀锡镀镍触点 CONTACT REC HE14 COSI TIN PLATED
182734-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN CONTACT 24-28AWG TIN CRIMP HE14 crimp terminal Headers & Wire Housings CRIMP SOCKET TIN HE14 182734-2 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Terminate To WireWire Insulation Diameter = .80 - 1.50 mmWire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP SOCKET,HE14,PK200 HE14crimpterminal Contact; female; 0.08÷0.24mm2; 24÷28AWG; HE14; tinned; crimped Crimp socket Female, 182734-2, TE Connectivity TE Connectivity AMPMODU HE14 系列 母 压接接线端子, 压接, 镀锡触点 CONTACT REC HE14 COSI LOOSE P
281838-4
te connectivity / amp

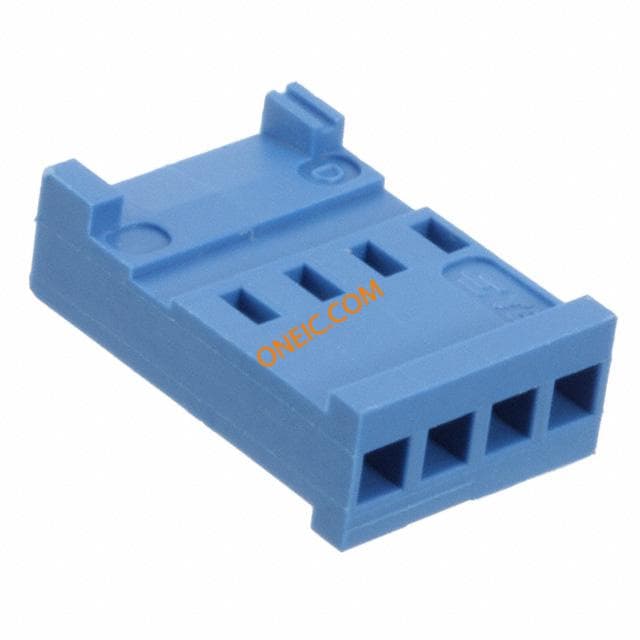

Conn Housing RCP 4 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts HOUSING HE13 HE14 COSI 4 P 4 way single row HE14 crimp socket shell Headers & Wire Housings 4 POS RECEPT VERT HE14 Conn Housing RCP 4 POS 2.54mm Crimp ST Loose Piece Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, CRIMP, RECEPTACLE, 2.54MM, 4WAY 4waysinglerowHE14crimpsocketshell Connector: wire-board; HE14; plug; female; for cable; PIN:4; 2.54mm Cable socket housing Pitch2.54 mm Poles 1 x 4 HE-14, 281838-4, TE Connectivity TE Connectivity AMPMODU HE13/HE14 系列 2.54mm 节距 4 路 直 母 电缆安装 PCB 连接器外壳
947679-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Hand Tools HE-14 P G HANDTOOL TOOL HAND CRIMPER HE-14 AMP HE14 crimp tool TOOL, HAND, CRIMP, HE14 AMPHE14crimptool Tool: for crimping; terminals; 28÷24AWG; Series: HE14; 195mm Crimping tool, 947679-1, TE Connectivity TE Connectivity HE13/14 Crimp-on & Snap-in Contacts 压接工具 , 适用于28 → 24 AWG 线规格 HE-14 P.G.HANDTOOL
525421-5
te connectivity / amp

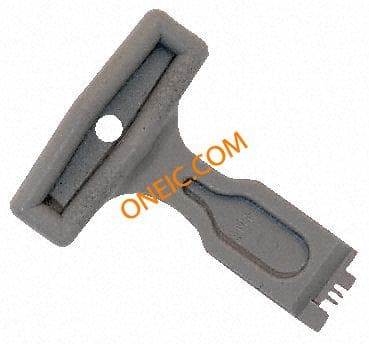

Connector/Terminal-To-Tool Reference Hand Tools PROTOTYPING TOOL M/F 7 AMP HE14 IDT prototyping tool Tee Handled Insertion Tool PROOTYPE TOOL, HE14 AMPHE14IDTprototypingtool TE Connectivity HE14 系列 端接工具端接工具
