点击放大查看

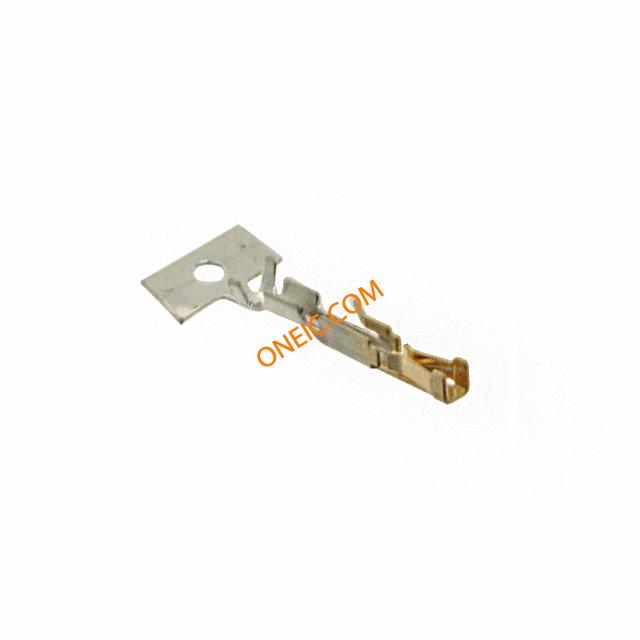

188746-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip CONN SOCKET CRIMP 28-24AWG GOLD Headers & Wire Housings CONTACT REC HE13 COSI GOLD PLATED Contact SKT Crimp ST Cable Mount Strip Product Highlights:Receptacle ContactWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Terminate To WireWire Insulation Diameter = .80 - 1.50 mmWire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT REC HE13 COSI GOLD PLATED |
| 分类 |
商业参数
| 标准包装数量 | Tape & Reel | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 连接器类型 - 电压输入 | Crimp |
机械参数
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 导线线规 | 24-28 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 包装数量 | 20000 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 绝缘直径 | .8 – 1.5 mm [ .032 – .059 in ] | 镀层厚度（通用） | 锡 |
| 接触镀层厚度 | 31.5µin (0.80µm) | ||
产品信息
| 连接器性别 | SKT | 系列 | HE13 / HE14 |
| 产品子类型 | Contacts | ||
