281838-6
| 制造商 | |

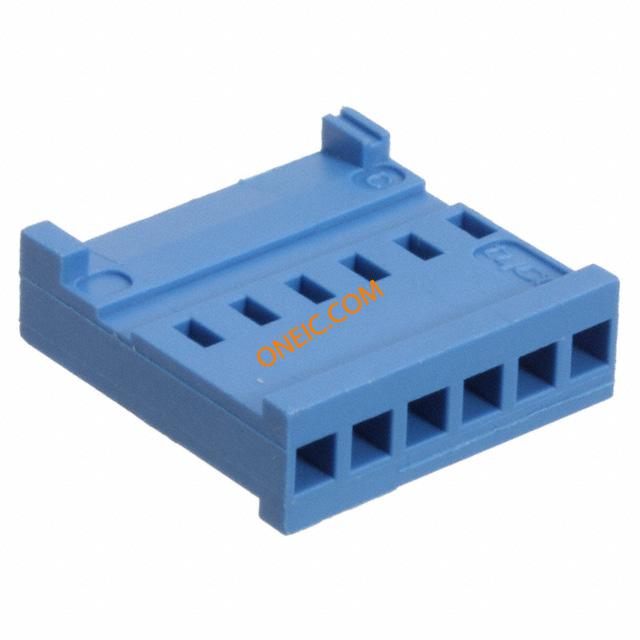

| 描述 | Conn Housing RCP 6 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 6POS IDC .100 6 way single row HE14 crimp socket shell Headers & Wire Housings 6 POS RECEPT VERT HE14 Conn Housing RCP 6 POS 2.54mm Crimp ST Loose Piece Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, CRIMP, RECEPTACLE, 2.54MM, 6WAY 6waysinglerowHE14crimpsocketshell Connector: wire-board; HE14; plug; female; for cable; PIN:6; 2.54mm Cable socket housing Pitch2.54 mm Poles 1 x 6 HE-14, 281838-6, TE Connectivity TE Connectivity AMPMODU HE13/HE14 系列 2.54mm 节距 6 路 直 母 电缆安装 PCB 连接器外壳 HOUSING HE13 HE14 COSI 6 P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | :3A | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Blue | 深度 | 15mm |
| 间距 | 2.54 mm | 宽度 | 5.08mm |
| 高度 | 5.08 mm | 长度 | 15.24mm |
| 重量 | 0.083 | 包装方式 | Bulk |
| 排间距 | 2.54 mm | 触头类型 | Female Socket |
| 柱间距 | 2.54 [.100] | 第二连接器 | Without |
| 外壳颜色 | Blue | 安装类型 | Straight |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 安装样式 | for cable |
| 排数 | 1 | 封装形式 | Receptacle |
| 壳体材料 | PBT - GF | 总长度 | 15.24 mm |
| 包装数量 | Loose Piece | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
| 第一连接器安装特征 | 1x6 | ||
产品信息
| SPG | 500 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | HE13 / HE14 | 预加载 | No |
| CAD图纸 | 3D CAD Model | 编码、键控 | No |
| 产品子类型 | Housing | 适配器系列 | HE14 |
| 单元数量 | 1 | ||
文档与媒体
相关型号
281698-6
te connectivity / amp

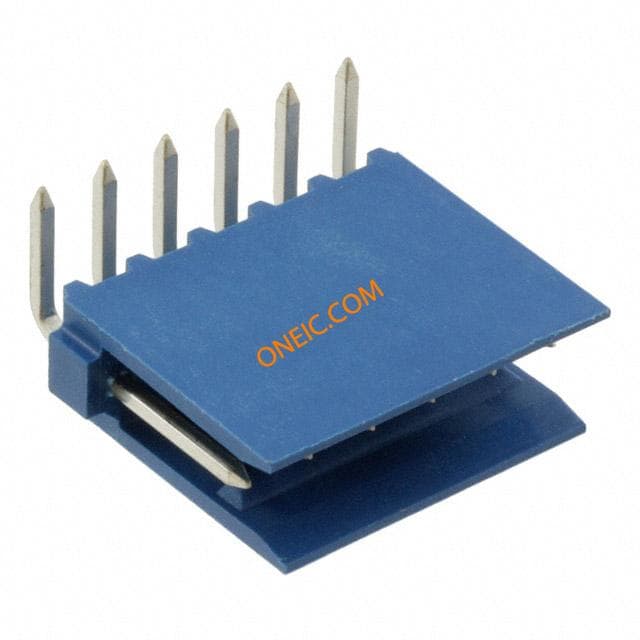

Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN HEADER 6POS R/A IDC T/H TIN TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings HEADER R/A 6 POS HE14 Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Loose Piece Product Highlights:HeaderNumber of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 6way1rowr/aHE14shroudedheader Socket; wire-board; male; PIN:6; 2.54mm; THT; HE14; 3A; angled 90° Pin header 90° Pitch2.54 mm Poles 1 x 6 HE-14, 281698-6, TE Connectivity TE Connectivity AMPMODU HE14 系列 2.54mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 HEADER HE14 RA 6 P
