点击放大查看

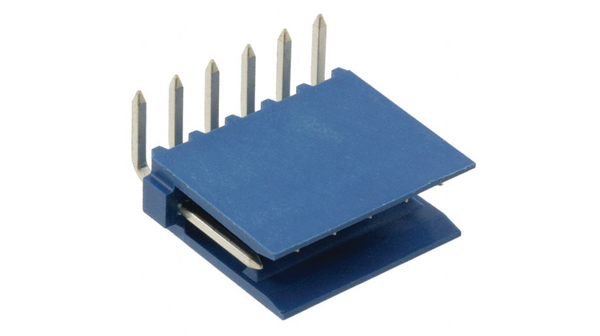

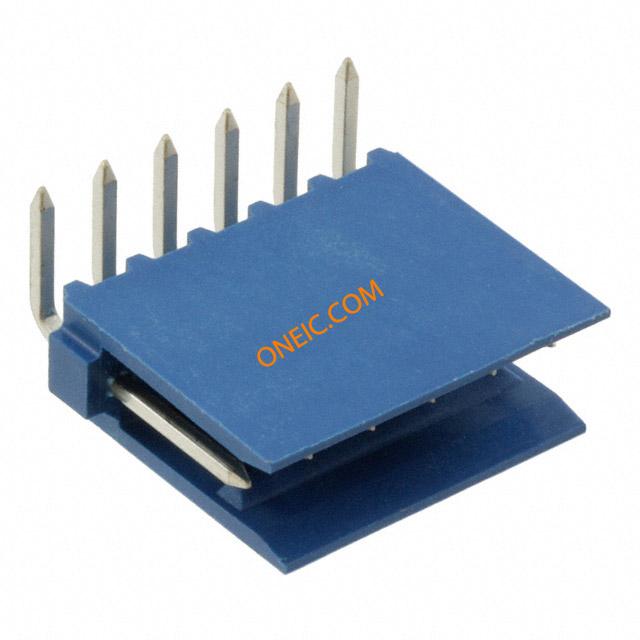

281698-6
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN HEADER 6POS R/A IDC T/H TIN TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings HEADER R/A 6 POS HE14 Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Loose Piece Product Highlights:HeaderNumber of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 6way1rowr/aHE14shroudedheader Socket; wire-board; male; PIN:6; 2.54mm; THT; HE14; 3A; angled 90° Pin header 90° Pitch2.54 mm Poles 1 x 6 HE-14, 281698-6, TE Connectivity TE Connectivity AMPMODU HE14 系列 2.54mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 HEADER HE14 RA 6 P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认可国家 | CSA LR7189, UL E28476 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 保护特性 | With | 材料阻燃等级 | UL 94V-0 |
电气参数
| 测试电压 | 500 | 极数 | 1 x 6 |
| 接触电阻 | ≤30 mOhm | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3A | 绝缘电阻 | 1000 MOhm |
机械参数
| 颜色 | Blue | 间距 | 2.54 mm |
| 重量 | 1 g | 底座类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 15.24 |
| 方向 | angled 90° | 排间距 | 2.54 mm |
| 稳定剂 | Without | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54mm |
| 第二连接器 | Without | 触点形状 | Square |
| 外壳颜色 | Blue | 安装类型 | Right Angle |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 接触镀层 | Tin Over Nickel |
| 安装样式 | Thru Hole | 排数 | 1 |
| 外壳材料（壳体） | 2- 面 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | High Temperature Thermoplastic |
| 包装数量 | Loose Piece | 面板安装类型 | 通孔 |
| 主要材料 | IndustrialRectangular | 尺寸/外形 | 0.64 [.025] |
| 端接排数 | 焊接 | 连接器 - 电缆 | socket |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 配接方向 | Without |
| 触点数 | 6 | 端接表面处理 | Tin-Lead |
| 位数 | 6 | 第一连接器极性 | Male |
| 引脚总长度 | 2.9 | 安装孔直径 | 不带 |
| 中心触点材料 | 2.54 [.100] | 接触长度 - 配合 | 0.276" (7.00mm) |
| 端子柱长度 | 6.75 | 静电放电屏蔽 | 不带 |
| 第一连接器安装特征 | 1x6 | ||
产品信息
| SPG | 1 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | HE13 / HE14 |
| 覆盖范围 | 覆盖 | 钥匙类型 | 否 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMPMODU |
| 产品子类型 | Header | 适配器系列 | HE14 |
| 放大器类型 | 12.7 | 连接类型 | Printed Circuit Board |
| 单元数量 | 1 | 连接方式 | Wire-Board |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 工作温度 | -40...+100 °C |
