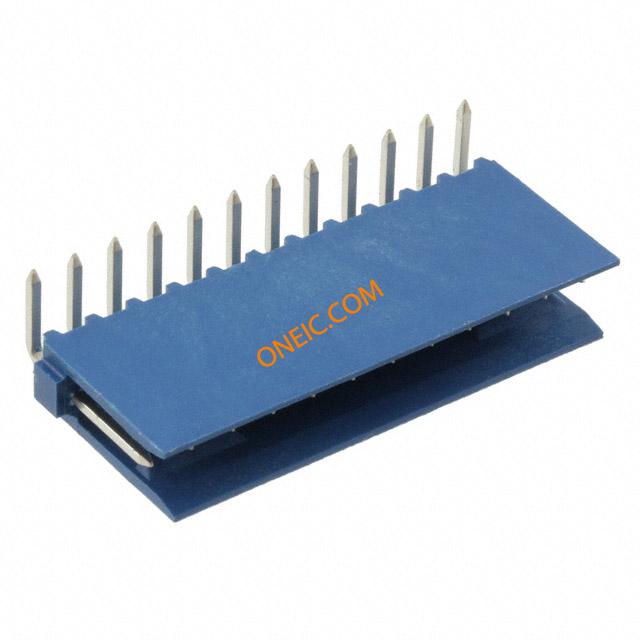

1-281698-2
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN HEADER 12POS IDC R/A T/H TI Headers & Wire Housings HEADER RA 12 POS HE14 Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Loose Piece Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER HE14 RA 12 P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认可国家 | CSA LR7189, UL E28476 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 保护特性 | With | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 |
机械参数
| 颜色 | Blue | 间距 | 2.54 mm |
| 底座类型 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 蓝色 | 排间距 | 2.54 mm |
| 稳定剂 | Without | 端接方式 | Solder |
| 触头类型 | Male Pin | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | Blue |
| 安装类型 | Right Angle | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 接触镀层 | Tin Over Nickel | 安装样式 | Thru Hole |
| 排数 | 1 | 外壳材料（壳体） | 2- 面 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | High Temperature Thermoplastic | 包装数量 | 500 |
| 面板安装类型 | 通孔 | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 配接方向 | Without |
| 触点数 | 12 | 端接表面处理 | Tin-Lead |
| 位数 | 12 | 引脚总长度 | 2.9 |
| 安装孔直径 | 不带 | 中心触点材料 | 2.54 [.100] |
| 接触长度 - 配合 | 0.276" (7.00mm) | 端子柱长度 | 6.75 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | HE13 / HE14 | 钥匙类型 | 否 |
| 产品子类型 | Header | 连接类型 | Printed Circuit Board |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 工作温度 | -55 – 105 |
